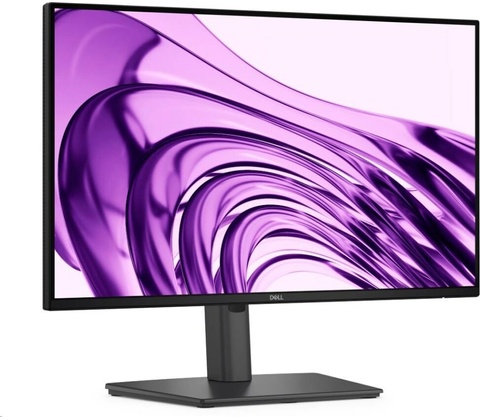

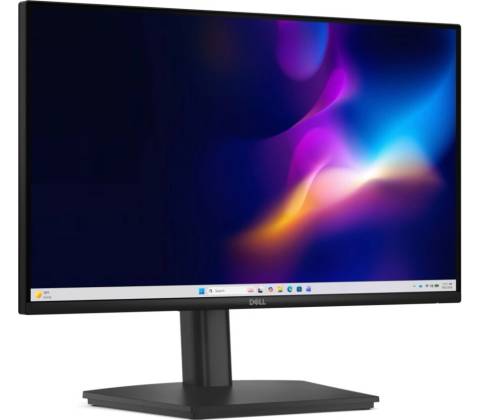

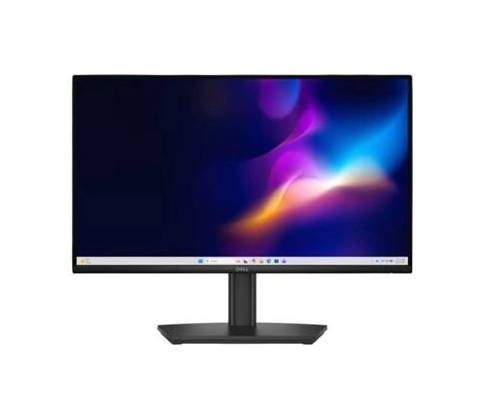

Dell E2226HS

General Information

Manufacturer

Dell Technologies

Manufacturer Part Number 323WX

Brand Name

Dell

Product Line

Pro

Product Model

E2226HS

Product Name

Pro 22 Adjustable Stand Monitor - E2226HS

Product Type

LCD Monitor

Technical Information

Number of Screens 1

Screen Size Class 22"

Viewable Screen Size 21.5"

Screen Mode

Full HD

Display Screen Type

Flat Panel

Panel Technology

In-plane Switching (IPS) Technology

Response Time Details 5 ms GTG (Fast) 8 ms GTG

Aspect Ratio 16:9

Pixel Pitch 0.24795 mm x 0.24795 mm

Horizontal Viewing Angle 178°

Vertical Viewing Angle 178°

Mount Type

Panel Mount

HDCP Supported

Yes

Maximum Adjustable Height 5.12"

Tilt Angle -5° to 21°

Swivel Angle -173° to 173°

Pivot Angle +/-90°

Features

Anti-glare

Arsenic-free Glass

BFR Free

Cable Lock Slot

Eye Comfort Technology

Low Blue Light

Mercury-free

PVC Free

Security Lock

Adjustable Stand

Yes

Stand Adjustments

Height

Pivot

Slant

Swivel

Tilt

Stand Included

Yes

Stand Type

Adjustable

Pivot

Yes

Curved Screen

No

Glass Hardness 3H

Surface Treatment

Anti-glare

Flicker Free

Yes

Video

Maximum Resolution 1920 x 1080

Standard Refresh Rate 100 Hz

Color Supported 16.7 Million Colors

Color Depth 8-bit (6-bit + FRC)

Native Contrast Ratio 1,000:1

Brightness 300 Nit

Color Gamut 72% NTSC (CIE 1931)

Calibration Accuracy

No

Maximum Preset Resolution 1920 x 1080 at 100Hz

Pixel Per Inch (PPI) 102

Resolution Type

Standard

Audio

Number of Speakers 2

Speakers

Yes

Speaker Output Power 2 x 2 W

Interfaces/Ports

Network (RJ-45)

No

HDMI

Yes

HDMI Version 1.4

USB

No

VGA

Yes

DisplayPort

Yes

Thunderbolt

No

USB Type-C

No

Number of HDMI Inputs 1

Total Number of HDMI Ports 1

Number of DisplayPorts 1

Number of VGA Ports 1

Number of DisplayPort 1.4 (HDCP 1.4) 1

Audio Line In

No

DVI-D

No

Audio Line Out

No

DisplayPort Input

Yes

DisplayPort Output

No

Number of HDMI 1.4 (HDCP 1.4) 1

USB Type-B

No

DisplayPort HDCP Version

HDCP 1.4

HDMI HDCP Version

HDCP 1.4

RS-232 (Rear)

No

Thunderbolt Downstream (Rear)

No

USB Type-A (Front)

No

USB Type-A (Rear)

No

USB Type-C (Front)

No

USB Type-C (Power Delivery) Upstream Supported (Rear)

No

USB Type-C (Without Power Delivery) Upstream Supported (Rear)

No

Interface/Port Details 1 HDMI port (HDCP 1.4) (Supports up to 1920 x 1080, 100 Hz as specified in HDMI 1.4) 1 DisplayPort 1.4 (HDCP 1.4) port 1 VGA port

Built-in Devices

Webcam

No

Microphone

No

Environmental Conditions

Operating Temperature Range 32°F (0°C) to 104°F (40°C)

Non-operating Temperature Range -4°F (-20°C) to 140°F (60°C)

Operating Humidity Range 10% to 80% (Non-condensing)

Non-operating Humidity Range 5% to 90% (Non-condensing)

Maximum Operating Altitude 16404 ft

Maximum Non-operating Altitude 40000 ft

Power Description

Input Voltage Range 100V AC to 240V AC

Operating Power Consumption 10.40 W

Standby Power Consumption 300 mW

Off-Mode Power Consumption 300 mW

Frequency 50 Hz 60 Hz

Maximum Power Consumption 28.50 W

Voltage Current 700 mA

Input Voltage Range/Current Details 100 VAC to 240 VAC/50 Hz or 60 Hz ± 3 Hz/0.7 A

Physical Characteristics

VESA Mount Compatible

Yes

VESA Mount Standard 100 x 100

Color Family

Black

Product Color

Black

Height 11.3"

Width 19.2"

Depth 2.2"

Height with Stand 18.56"

Width with Stand 19.21"

Depth with Stand 8.33"

Compressed Height with Stand 13.45"

Extended Height with Stand 18.56"

Bezel Width (Top) 0.24"

Bezel Width (Bottom) 0.48"

Bezel Width (Left) 0.24"

Bezel Width (Right) 0.24"

Weight (Approximate) 4.83 lb

Stand Height 15.75"

Stand Width 10.12"

Stand Depth 8.33"

Weight with Stand & Cables (Approximate) 8.64 lb

Miscellaneous

Package Contents

Pro 22 Adjustable Stand Monitor - E2226HS

Stand

Power Cable: 1.80 m 1 x DisplayPort to DisplayPort cable (1.8 m) for NA and LATAM

QR card

Safety, Environmental, and Regulatory Information

Certifications & Standards

California CEC

BFR/PVC reduce monitor (Circuit boards are made from BFR/PVC-free laminates)

Arsenic-Free glass and Mercury-Free for the panel only

Meets NFPA 99 leakage current requirements.

Product Safety, EMC, and Environmental Datasheets

Dell Regulatory Compliance Homepage

Dell and the Environment

GS Mark

Platform Supported

Linux

Mac

Windows

Energy Star

Yes

TAA Compliant

Yes

TCO Certified

Yes

Eye Comfort Certification

Yes

Eye Comfort Rating 3 Star

Dell Display and Peripheral Manager Compatibility

Yes

Remote Asset Management

Dell Display and Peripheral Manager (DDPM)

Cable Type Included

Power Cable: 1.80 m 1 x DisplayPort to DisplayPort cable (1.8 m) for NA and LATAM

Environmentally Friendly

Yes

Environmental Certification

China Environmental United Certification Center (CEC)

Electronic Product Environmental Assessment Tool Climate+ (EPEAT Climate+)

Electronic Product Environmental Assessment Tool Gold (EPEAT Gold)

TCO Certified 10.0

TCO Certified Edge

Energy Efficiency Certification

China Energy Conservation Program (CECP)

ENERGY STAR 8.0

Energy Efficiency Compliance

Energy-related Products Directive (ErP)

Energy-related Products Directive Lot 5 (ErP Lot 5)

Korea E-Standby

Minimum Energy Performance Standards (MEPS)

Environmental Compliance

China Restriction of Hazardous Substances (China RoHS)

Eurasian Economic Union Restriction of Hazardous Substances (EAEU RoHS)

Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)

Restriction of Hazardous Substances (RoHS)

Waste Electrical and Electronic Equipment Directive (WEEE)

Warranty

Limited Warranty 3 Year

Additional Warranty Information 3-Year Advanced Exchange Service
