Portkeys HD7T

• Uhlopříčka obrazovky (cm): 17,78
• Úhlopříčka obrazovky (palce "): 7
• Rozlišení: 1280 x 800
• Jasnost (cd/m2): 1000
• Kontrastní poměr: 1000:1
• Horizontální pozorovací úhel (°): 80
• Vertikální pozorovací úhel (°): 80
• zásobování energií: Aku/síťové napájení
• Typ aku: Lithium-Ionen
• Včetně baterií: ne
• HDMI-Vstup: 1x
• Připojení sluchátek: ano
• Typ: Monitor
• Barva: černá
• Šířka (mm): 176,1
• Výška (mm): 103,8
• Hloubka (mm): 29,2
• Hmotnost (g): 245

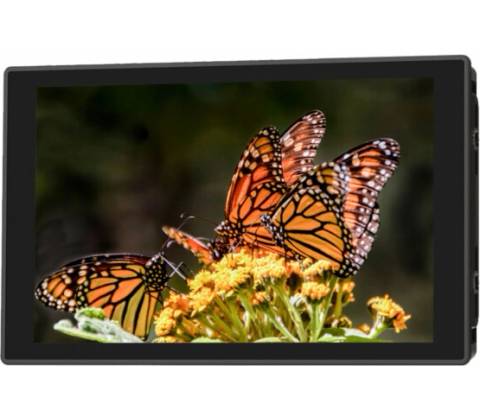

Portkeys HD7T 1000nits 7” DSLR Camera Monitor Screen with HDMI Input

The Portkeys HD7T is an ultra-light, HDMI-based 7-inch on-camera monitor for creators who need important monitoring functions in a compact and affordable format. With 4K30p signal support, 1000 nits brightness and a fast touchscreen interface, the HD7T is ideal for outdoor filming, lightweight camera rigs or as a reliable second monitor.

The fully laminated touchscreen allows easy navigation and control. The wide 80° viewing angle from all sides makes sure you see a clear and consistent image. Whether you film interviews, vlogs or action scenes in daylight, the HD7T gives you the visibility, accuracy and flexibility you need.

Features: 7-inch REC.709 1280 x 800 IPS touchscreen display, 8-bit colour depth, 1000:1 contrast ratio

Daylight-viewable brightness up to 1000 nits 4K30p HDMI input, supports UHD and DCI formats

AV-IN port for older video systems

• Compact and lightweight: only 245 g, case thickness 20.8 mm
• Flexible power options: Sony NP-F battery plate or DC input (7 V–20 V), maximum power consumption 10 W
• Robust case: plastic for reliable field use

Professional Monitoring Tools: 3D LUT support: LUTs can be loaded and previewed via USB drive.

Supports up to 20 sets of replaceable LUTs

• Exposure tools: false colour, zebra, histogram
• Focus assist: peaking, zoom-in
• Frame tools: rectangle cut-out, grid, anamorphic desqueeze (1.33x/1.5x/2.0x/custom 0.25–4.0x)
• Image analysis tool: waveform, vectorscope, audio meter and histogram
