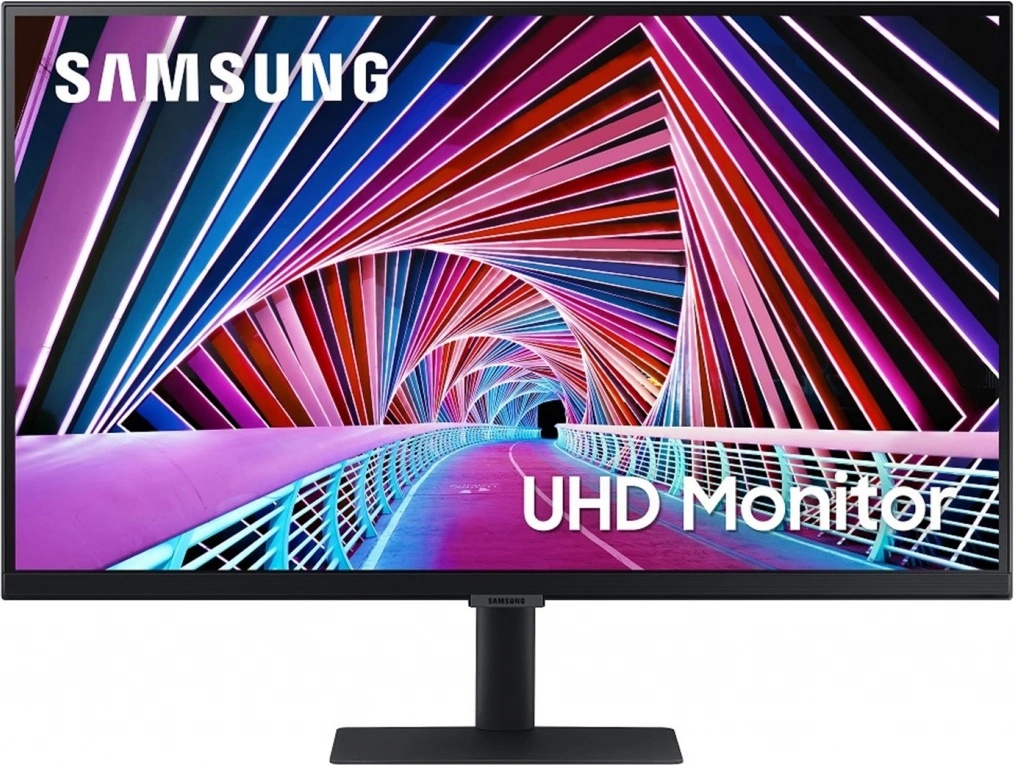

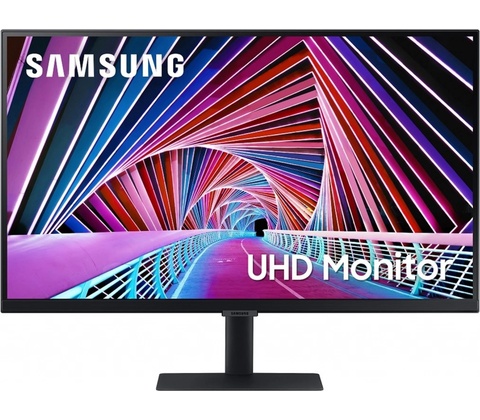

Samsung ViewFinity S70A S27A700

Screen Size (Class)27

Flat / CurvedFlat

Active Display Size (HxV) (mm)596.736 x 335.664mm

Screen CurvatureN/A

Aspect Ratio16:09

Panel TypeIPS

Brightness (Typical)300 cd/?

Peak Brightness (Typical)N/A

Brightness (Min)250 cd/?

Contrast Ratio Static1000:1(Typ)

Dynamic Contrast RatioMega ? DCR

HDR(High Dynamic Range)HDR10

HDR10+N/A

Resolution3,840 x 2,160

Response Time (ms)5ms

Viewing Angle (H/V)178°/178°

Color SupportMax 1.07B

Color Gamut (NTSC)N/A

Color Gamut (DCI Coverage)N/A sRGB CoverageN/A

Adobe RGB CoverageN/A

Frame RateMax 60Hz

Samsung MagicRotation AutoN/A

Eco Saving PlusYes

Eco Motion SensorN/A

Eco Light SensorYes 0.00 W Off modeN/A

Eye Saver ModeYes

Flicker FreeYes

Picture-In-PictureYes

Picture-By-PictureYes

Active Crystal ColorN/A

Quantum Dot ColorN/A

Game ModeYes

Image SizeYes

USB Super ChargingN/A

Daisy ChainN/A

Windows CertificationWindows10

FreeSyncN/A

G-SyncN/A

Off Timer PlusYes

Smartphone Wireless ChargingN/A

Screen Size OptimizerN/A

Black EqualizerN/A

Low Input Lag ModeN/A

Refresh Rate OptimizorN/A

Custom KeyN/A

Super Arena Gaming UXN/A

HDMI-CECN/A

Auto Source SwitchYes

Auto Source Switch+N/A

Adaptive PictureYes

USB-C Power BoostN/A

Ultrawide Game ViewN/A

Smart TypeN/A

Operating SystemN/A

BixbyN/A

TV PlusN/A

Universal GuideN/A

SmartThings App SupportN/A

SmartThingsN/A

Mobile to Screen - Mirroring, DLNAN/A

Tap ViewN/A

Remote AccessN/A

Sound MirroringN/A

ConnectShare™ (USB 2.0)N/A

Wireless DisplayNo

D-SubNo

DVINo

Dual Link DVINo

Display Port1 EA

Display Port Version1.Feb

Display Port OutNo

Display Port Out VersionN/A

Mini-Display PortNo

HDMI1 EA

HDMI Version2.0

Audio InNo

HeadphoneYes

USB Ports1

USB Hub VersionN/A

USB-CNo

USB-C Charging PowerNo

Thunderbolt 3N/A

Thunderbolt 3 Charging Power (Port 1)N/A

Thunderbolt 3 Charging Power (Port 2)N/A

Ethernet (LAN)N/A

WiFiN/A

BluetoothN/A

SpeakerNo

Temperature10~40 ?

Humidity10~80,non-condensing %

Factory TunningYES

Built in Calibration EngineN/A

LUT(Look-up Table) Bit DepthN/A

Gray BalanceN/A

Uniformity CorrectionN/A

Color ModeCUSTOM, STANDARD, CINEMA, DYNAMIC CONTRAST, HIGH BRIGHT, sRGB

CMS(Color Management Software)N/A

Factory Calibration ReportN/A

ColorBLACK

Stand TypeSIMPLE

HAS(Height Adjustable Stand)N/A

Tilt-2.0?(±2.0?)~22.0?(±2.0?)

SwivelN/A

PivotN/A

Wall Mount100 x 100

ENERGY STARYes

Energy Efficiency ClassG

Recycled Plastic3%

Power SupplyAC 100~240V

Power Consumption (Max)N/A

Power Consumption (Typ)28.0 W

Power Consumption (DPMS)N/A

Power Consumption (Off Mode)N/A

Power Consumption (Yearly)39 kWh/year

TypeInternal Power

Set Dimension with Stand (WxHxD)615.5 x 456 x 193.5 mm

Set Dimension without Stand (WxHxD)615.5 x 368.2 x 42.7 mm

Package Dimension (WxHxD)738.0 x 126.0 x 428.0 mm

Set Weight with Stand5.5 kg

Set Weight without Stand4.4 kg

Package Weight7 kg

Power Cable Length1.5 m

D-Sub CableN/A

DVI CableN/A

HDMI CableYes

HDMI to DVI CableN/A

DP CableN/A

USB Type-C CableN/A

Thunderbolt 3 CableN/A

Mini-Display GenderNo

Install CDYes

Audio CableN/A

USB 2.0 CableN/A

USB 3.0 CableN/A

Remote ControllerN/A
