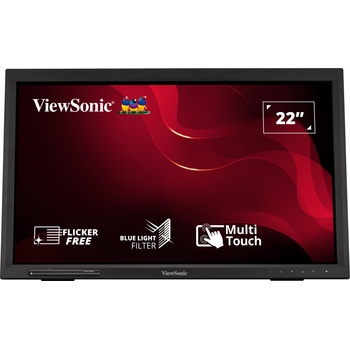

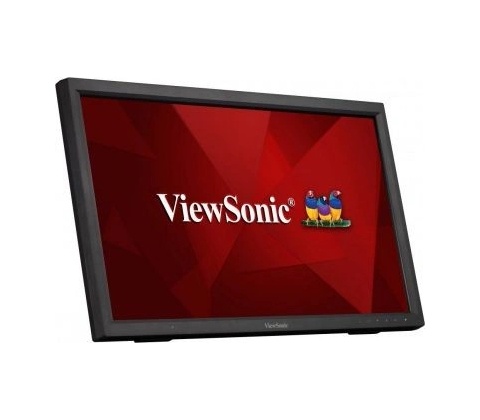

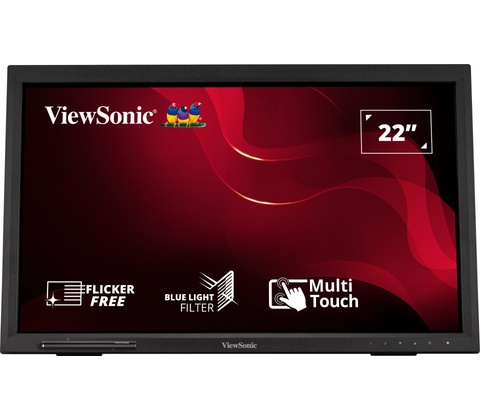

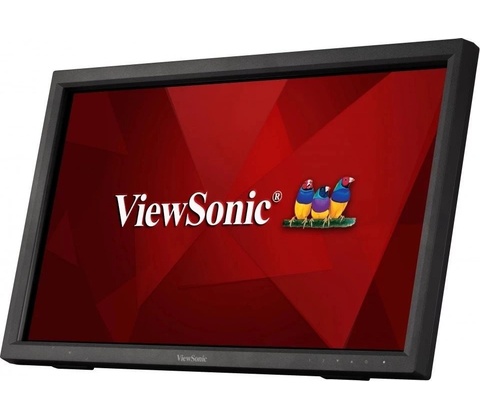

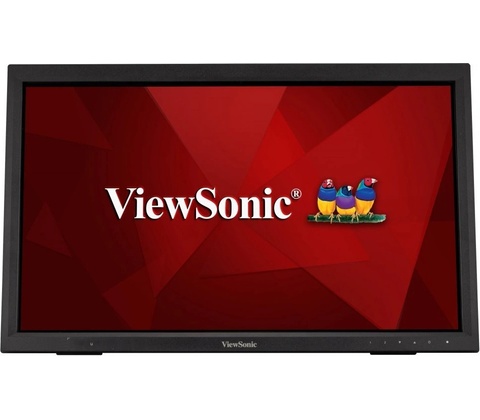

ViewSonic TD2223

TD2223 22” IR Touch Monitor

Intuitive 10-point touchscreen

Finger, stylus, and glove touch compatible

Magnetic pen placeholder

Adjustable back tilt up to 40-degrees

Scratch-resistant 7H hardness screen

OVERVIEW

The ViewSonic® TD2223 is a 22” IR touch display designed for intuitive multi-touch use. Infrared (IR) touchscreen can detect up to 10 points of contact compared to optical touchscreens and can be operated by a stylus, fingers and gloved hands. The multi-touch input is more accurate, and the display is faster. Coupled with an adjustable tilt, you can easily interact with the TD2223 at an ideal position. This monitor features Full HD resolution to give you clear images and is built with scratch-resistant 7H hardness screen to surface damage. To support your work, the TD2223 is equipped with VGA, HDMI, DVI and USB connectivity.

SPECIFICATIONS

Display

• Display Size (in.): 22
• Viewable Area (in.): 21.5
• Panel Type: TN Technology
• Resolution: 1920 x 1080
• Resolution Type: FHD
• Static Contrast Ratio: 1,000:1 (typ)
• Dynamic Contrast Ratio: 20M:1
• Light Source: LED
• Brightness: 250 cd/m2 (typ)
• Colors: 16.7M
• Color Space Support: 8 bit (6 bit + Hi-FRC)
• Aspect Ratio: 16:9
• Response Time (Typical GTG): 5ms
• Response Time (GTG w/OD): 5ms
• Response Time (Typical Tr+Tf): 5ms
• Viewing Angles: 170o horizontal, 160o vertical
• Backlight Life (Hours): 30000 Hrs (Min)
• Curvature: Flat
• Refresh Rate (Hz): 75
• Blue Light Filter: Yes
• Flicker-Free: Yes
• Color Gamut: NTSC: 72% size (Typ), sRGB: 103% size (Typ)
• Pixel Size: 0.248 mm (H) x 0.248 mm (V)
• Touch Screen: IR, 10-point multi-touch
• Surface Treatment: Glossy, Hard Coating (7H)
• Cover Glass Thickness: 2mm

Compatibility

• PC Resolution (max): 1920x1080
• Mac® Resolution (max): 1920x1080
• PC Operating System: Windows 10 certified; macOS tested
• Mac® Resolution (min): 1920x1080

Connector

• VGA: 1
• USB 2.0 Type A: 2
• USB 2.0 Type B: 1
• 3.5mm Audio In: 1
• 3.5mm Audio Out: 1
• HDMI 1.4: 1
• DVI-D: 1
• Power in: 3-pin Socket (IEC C14 / CEE22)

Audio

Internal Speakers: 2Watts x2

Power

• Eco Mode (Conserve): 8.5W
• Eco Mode (optimized): 10.5W
• Consumption (typical): 12.5W
• Consumption (max): 14W
• Voltage: AC 100-240V, 50/60 Hz
• Stand-by: 0.5W
• Power Supply: Internal

Additional Hardware

• Kensington Lock Slot: 1
• Cable Organization: Yes

Controls

• Physical Controls: 1, 2, Up, Down, Power
• On Screen Display: Auto Image Adjust, Contrast/Brightness, Input Select, Audio Adjust, Color Adjust, Information, Manual Image Adjust, Setup Menu, Memory Recall

Operating Conditions

• Temperature: 32°F to 104°F (0°C to 40°C)
• Humidity (non-condensing): 20% to 90%

Wall Mount

VESA Compatible: 100 x 100 mm

Input Signal

• Frequency Horizontal: 24 ~ 82KHz
• Frequency Vertical: 50 ~ 75Hz

Video Input

• Digital Sync: TMDS - DVI-D, TMDS - HDMI (v1.4)
• Analog Sync: Separate/Composite/SOG - RGB Analog

Ergonomics

Tilt (Forward/Back): 22o / 38o

Weight (imperial)

• Net (lbs): 9.9
• Net Without Stand (lbs): 8.6
• Gross (lbs): 13.2

Weight (metric)

• Net (kg): 4.5
• Net Without Stand (kg): 3.9
• Gross (kg): 6

Dimensions (imperial) (wxhxd)

• Packaging (in.): 22.8 x 15.9 x 6.5
• Physical (in.): 20.5 x 13.1 x 4
• Physical Without Stand (in.): 20.5 x 12.5 x 2.4

Dimensions (metric) (wxhxd)

• Packaging (mm): 580 x 405 x 164
• Physical (mm): 521 x 334 x 101
• Physical Without Stand (mm): 521 x 318 x 61

General

• Regulations: cTUVus, FCC-B, ICES003, Energy Star 8.0, EPEAT Silver, CEC, MX-CoC, Mexico Energy, CE, CE EMC, CB, RoHS, ErP, REACH, WEEE, EAC, UkrSEPRO, BSMI, RCM, GEMS, VCCI, PSE, BIS, CCC, China RoHS, China Energy Label, CECP
• PACKAGE CONTENTS: TD2223 x1, 3-pin Plug (IEC C13 / CEE22) x1, HDMI Cable (v1.4; Male-Male) x1, USB A/B Cable (v2.0; Male-Male) x1, Audio Cable (Male-Male) x1, Quick Start Guide x1
• Recycle/Disposal: Please dispose of in accordance with local, state or federal laws.
• Warranty: *Warranty offered may differ from market to market
• Power Management: Energy Star standards, EPEAT
