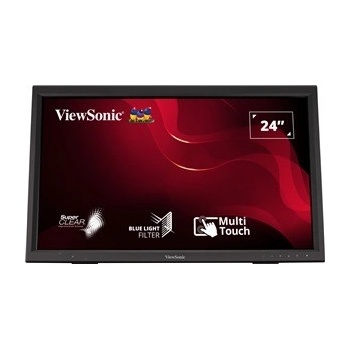

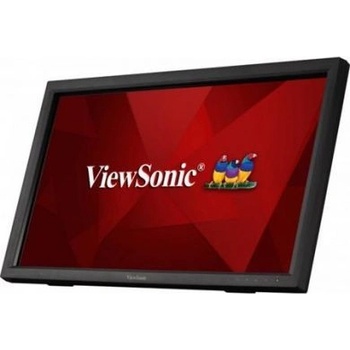

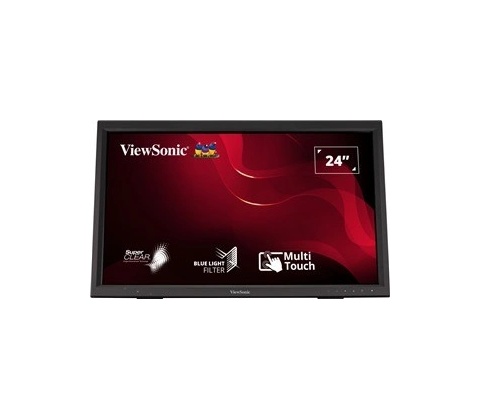

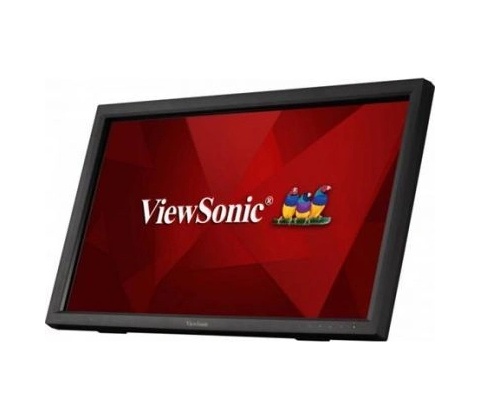

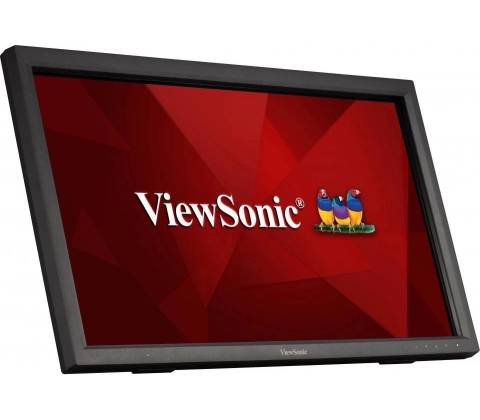

TD2423 24” IR Touch Monitor
Intuitive 10-point touchscreen
Finger, stylus, and glove touch compatible
Magnetic pen placeholder
Adjustable back tilt up to 40-degrees
Scratch-resistant 7H hardness screen
OVERVIEW
The ViewSonic® TD2423 is a 24” IR touch display designed for intuitive multi-touch use. Infrared (IR) touchscreen can detect up to 10 points of contact compared to optical touchscreens and can be operated by a stylus, fingers and gloved hands. The multi-touch input is more accurate, and the display is faster. Coupled with an adjustable tilt, you can easily interact with the TD2423 at an ideal position. This monitor features Full HD resolution to give you clear images and is built with scratch-resistant 7H hardness screen to surface damage. To support your work, the TD2423 is equipped with VGA, HDMI, DVI and USB connectivity.
SPECIFICATIONS
DISPLAY
- Display Size (in.): 24
- Viewable Area (in.): 23.6
- Panel Type: VA Technology
- Resolution: 1920 x 1080
- Resolution Type: FHD
- Static Contrast Ratio: 3,000:1 (typ)
- Dynamic Contrast Ratio: 20M:1
- Light Source: LED
- Brightness: 250 cd/m2 (typ)
- Colors: 16.7M
- Color Space Support: 8 bit (6 bit + Hi-FRC)
- Aspect Ratio: 16:9
- Response Time (Typical GTG): 7ms
- Response Time (GTG w/OD): 7ms
- Response Time (Typical Tr+Tf): 25ms
- Viewing Angles: 178o horizontal, 178o vertical
- Backlight Life (Hours): 40000 Hrs (Min)
- Curvature: Flat
- Refresh Rate (Hz): 75
- Blue Light Filter: Yes
- Flicker-Free: Yes
- Color Gamut: NTSC: 72% size (Typ), sRGB: 104% size (Typ)
- Pixel Size: 0.272 mm (H) x 0.272 mm (V)
- Touch Screen: IR, 10-point multi-touch
- Surface Treatment: Glossy, Hard Coating (7H)
- Cover Glass Thickness: 1.85mm
COMPATIBILITY
- PC Resolution (max): 1920x1080
- Mac® Resolution (max): 1920x1080
- PC Operating System: Windows 10 certified; macOS tested
- Mac® Resolution (min): 1920x1080
CONNECTOR
- VGA: 1
- USB 2.0 Type A: 2
- USB 2.0 Type B: 1
- 3.5mm Audio In: 1
- 3.5mm Audio Out: 1
- HDMI 1.4: 1
- DVI-D: 1
- Power in: 3-pin Socket (IEC C14 / CEE22)
AUDIO
Internal Speakers: 2Watts x2
POWER
- Eco Mode (Conserve): 11.5W
- Eco Mode (optimized): 13.5W
- Consumption (typical): 15.5W
- Consumption (max): 16.5W
- Voltage: AC 100-240V, 50/60 Hz
- Stand-by: 0.5W
- Power Supply: Internal
ADDITIONAL HARDWARE
- Kensington Lock Slot: 1
- Cable Organization: Yes
CONTROLS
- Physical Controls: 1, 2, Up, Down, Power
- On Screen Display: Auto Image Adjust, Contrast/Brightness, Input Select, Audio Adjust, Color Adjust, Information, Manual Image Adjust, Setup Menu, Memory Recall
OPERATING CONDITIONS
- Temperature: 32°F to 104°F (0°C to 40°C)
- Humidity (non-condensing): 20% to 90%
WALL MOUNT
VESA Compatible: 100 x 100 mm
INPUT SIGNAL
- Frequency Horizontal: 24 ~ 82KHz
- Frequency Vertical: 50 ~ 75Hz
VIDEO INPUT
- Digital Sync: TMDS - DVI-D, TMDS - HDMI (v1.4)
- Analog Sync: Separate/Composite/SOG - RGB Analog
ERGONOMICS
Tilt (Forward/Back): 22o / 38o
WEIGHT (IMPERIAL)
- Net (lbs): 11.5
- Net Without Stand (lbs): 10.3
- Gross (lbs): 15.4
WEIGHT (METRIC)
- Net (kg): 5.2
- Net Without Stand (kg): 4.7
- Gross (kg): 7
DIMENSIONS (IMPERIAL) (WXHXD)
- Packaging (in.): 25.4 x 16.6 x 6.5
- Physical (in.): 22.5 x 13.7 x 4
- Physical Without Stand (in.): 22.5 x 13.7 x 2.4
DIMENSIONS (METRIC) (WXHXD)
- Packaging (mm): 645 x 422 x 166
- Physical (mm): 571 x 348 x 101
- Physical Without Stand (mm): 571 x 348 x 61
GENERAL
- Regulations: cTUVus, FCC-B, ICES003, Energy Star 8.0, EPEAT Silver, CEC, MX-CoC, Mexico Energy, CE, CE EMC, CB, RoHS, ErP, REACH, WEEE, EAC, UkrSEPRO, BSMI, RCM, GEMS, PSE, CCC, China RoHS, China Energy Label, CECP
- PACKAGE CONTENTS: TD2423 x1, 3-pin Plug (IEC C13 / CEE22) x1, HDMI Cable (v1.4; Male-Male) x1, USB A/B Cable (v2.0; Male-Male) x1, Audio Cable (Male-Male) x1, Quick Start Guide x1
- Recycle/Disposal: Please dispose of in accordance with local, state or federal laws.
- Warranty: *Warranty offered may differ from market to market
- Power Management: Energy Star standards, EPEAT
