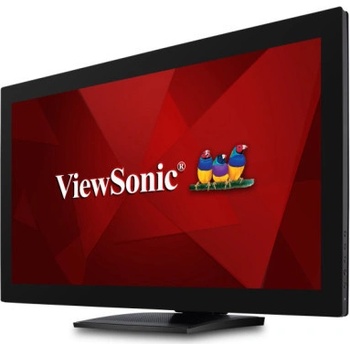

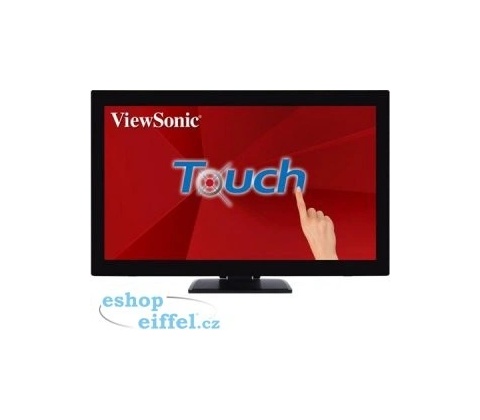

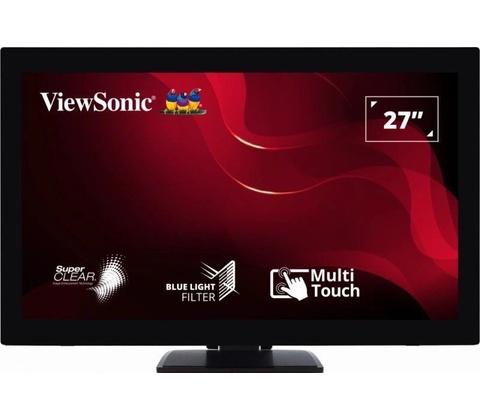

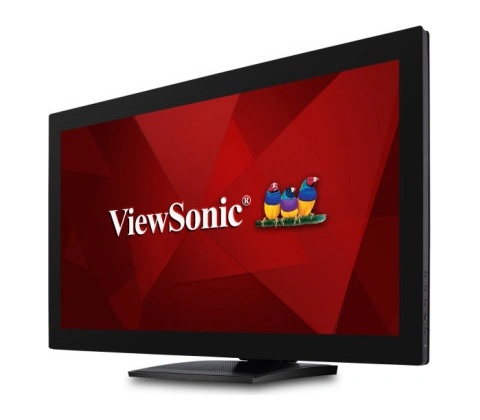

ViewSonic TD2760

TD2760 27" 10-point Touch Screen Monitor

SuperClear® technology

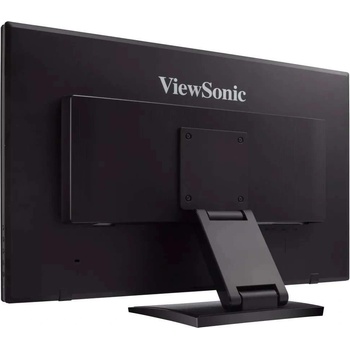

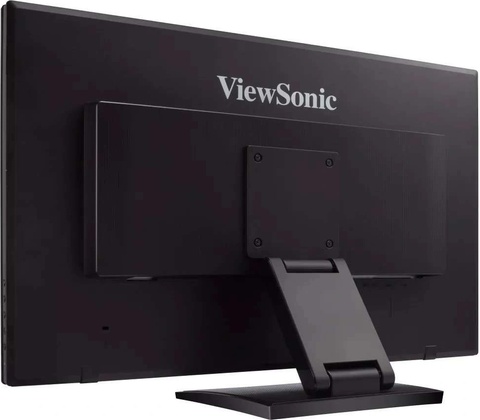

Advanced ergonomic stand for tilt or flat

HDMI, DisplayPort and VGA inputs 50M:1 dynamic contrast ratio

Supports Windows® 7/8/10 and selected Linux, Chrome, and Android

OVERVIEW

The ViewSonic TD2760 is an ideal solution for both commercial and consumer touch screen applications. With an intuitive 10-point multi-touch display and 1080p Full HD resolution, the 27-inch TD2760 delivers a versatile solution for use in the office or at home, as well as for use as an information kiosk in public areas, retail, and corporate sectors. SuperClear® technology with ultra-wide viewing angles and 50M:1 MEGA Dynamic Contrast Ratio bring greater definition and clarity to multimedia content. For added convenience, cross-platform compatibility works with operating systems such as Windows 10, Linux, Chrome, and Android.* Built-in connectivity options include DisplayPort, HDMI, and VGA ports along with a VESA mount design, offering additional convenience for use as a wall-mounted display. Additionally, the RS232 port provides local control for other RS232 connected devices, while HDMI CEC offers local control of multiple connected devices such as HD set-top boxes, media players, and sound systems. The TD2760's ergonomic stand makes it easy for the user to tilt and raise the monitor, or lay it flat for the most natural position, and create a comfortable working environment. Lastly, low power consumption with Energy Star certification saves energy costs while reducing carbon emission. *Supports Windows 7/8/10, the latest Linux Kernel 4.X/3.X, the latest Chrome version, and Android 6.0 & 7.0

SPECIFICATIONS

LCD PANEL

• Display Size (in.): 27
• Viewable Area (in.): 27
• Panel Type: VA Technology
• Resolution: 1920 x 1080
• Resolution Type: FHD
• Static Contrast Ratio: 3,000:1 (typ)
• Dynamic Contrast Ratio: 50M:1
• Light Source: LED
• Brightness: 230 cd/m2 with touch; 300 cd/m2 without touch
• Colours: 16.7M
• Colour Space Support: 8 bit (6 bit + Hi-FRC)
• Aspect Ratio: 16:9
• Response Time (Typical GTG): 6ms
• Response Time (GTG w/OD): 6ms
• Response Time (MPRT): N/A
• Viewing Angles: 178o horizontal, 178o vertical
• Backlight Life (Hours): 30000 Hrs (Min)
• Curvature: Flat
• Refresh Rate (Hz): 60
• Blue Light Filter: Yes
• Flicker-Free: Yes
• X Lighting: N/A
• Colour Gamut: NTSC: 72% size (Typ)
• Pixel Size: 0.311 mm (H) x 0.311 mm (V)

COMPATIBILITY

• PC Resolution (max): 1920x1080
• Mac® Resolution (max): 1920x1080
• PC Operating System: Windows 7/8.1/10 certified; macOS tested
• Mac® Resolution (min): 1920x1080

CONNECTOR

• VGA: 1
• USB 3.0 Type A: 2
• USB 3.0 Type B: 1
• 3.5mm Audio In: 1
• 3.5mm Audio Out: 1
• Display Port: 1
• Power in: 3-pin Socket (IEC C14 / CEE22)
• RS232 In: 1

TOUCH

• Touch Technology: Capacitive multi-point touch
• Touch Points: 10
• Surface Treatment: Anti-Glare, Hard Coating (?6H)
• Glass Thickness: 1.88mm

AUDIO

Internal Speakers: 2Watts x2

POWER

• Eco Mode (Conserve): 19W
• Eco Mode (optimized): 22W
• Consumption (typical): 26W
• Consumption (max): 28W
• Voltage: AC 100-240V, 50/60 Hz
• Stand-by: 0.3W
• Power Supply: Internal

ADDITIONAL HARDWARE

• Kensington Lock Slot: 1
• Cable Organization: N/A

CONTROLS

• Physical Controls: 1, 2, Up, Down, Power
• On Screen Display: Auto Image Adjust, Contrast/Brightness, Input Select, Audio Adjust, Color Adjust, Information, Manual Image Adjust, Setup Menu, Memory Recall

OPERATING CONDITIONS

• Temperature: 32°F to 104°F (0°C to 40°C)
• Humidity (non-condensing): 20% to 90%

WALL MOUNT

VESA Compatible: 100 x 100 mm

INPUT SIGNAL

• Frequency Horizontal: 15 ~ 90KHz
• Frequency Vertical: 50 ~ 76Hz

VIDEO INPUT

• Digital Sync: TMDS - HDMI (v1.4), PCI-E - DisplayPort (v1.2)
• Analog Sync: Separate/Composite/SOG - RGB Analog

ERGONOMICS

• Height Adjust (mm): N/A
• Swivel: N/A
• Tilt (Forward/Back): -4o / 90o
• Pivot (Right/Left): N/A

WEIGHT (IMPERIAL)

• Net (lbs): 17.4
• Net Without Stand (lbs): 12.2
• Gross (lbs): 22.6

WEIGHT (METRIC)

• Net (kg): 7.9
• Net Without Stand (kg): 5.5
• Gross (kg): 10.2

DIMENSIONS (IMPERIAL) (WXHXD)

• Packaging (in.): 29.6 x 20.7 x 8
• Physical (in.): 26 x 17.5 x 9.4
• Physical Without Stand (in.): 26 x 16.2 x 2.3

DIMENSIONS (METRIC) (WXHXD)

• Packaging (mm): 753 x 525 x 204
• Physical (mm): 660 x 443 x 239
• Physical Without Stand (mm): 660 x 410 x 58

GENERAL

• Regulations: cTUVus, FCC-B, ICES003, Energy Star, MX-CoC, Mexico Energy, CE, CE EMC, CB, RoHS, ErP, REACH, WEEE, EAC, UkrSEPRO, RCM, GEMS
• PACKAGE CONTENTS: TD2760 x1, 3-pin Plug (IEC C13 / CEE22) x1, VGA Cable (Male-Male) x1, HDMI Cable (v1.4; Male-Male) x1, Audio Cable (Male-Male) x1, USB A/B Cable (v3.0; Male-Male) x1, Quick Start Guide x1
• Recycle/Disposal: Please dispose of in accordance with local, state or federal laws.
• Warranty: *Warranty offered may differ from market to market
• Country Of Origin: China
• Power Management: Energy Star standards
