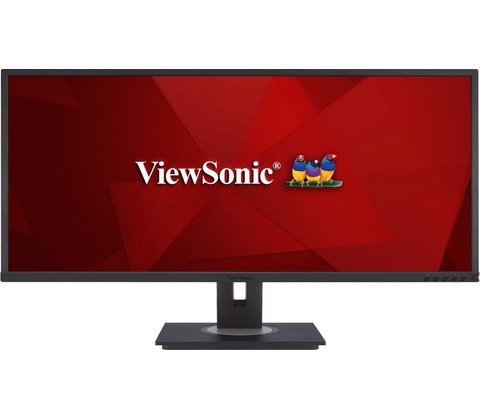

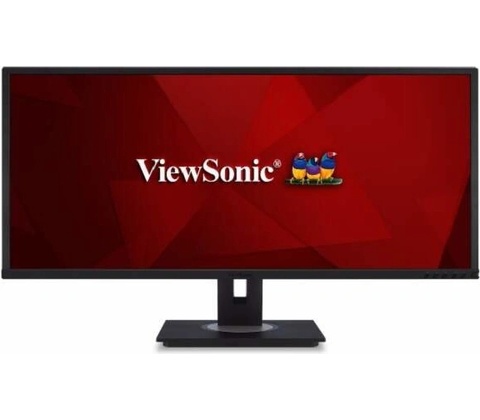

ViewSonic VG3448

VG3448 34” Ultrawide 21:9 Advanced Ergonomics Business Monitor

WQHD 1440p resolution

Narrow bezel

HDMI, DisplayPort and Mini DP inputs

SuperClear® VA technology

Client mount support

OVERVIEW

The ViewSonic® VG3448 is not only designed for modern VG3448 34” Ultrawide 21:9 Advanced Ergonomics Business Monitor

WQHD 1440p resolution

Narrow bezel

HDMI, DisplayPort and Mini DP inputs

SuperClear® VA technology

Client mount support

OVERVIEW

The ViewSonic® VG3448 is not only designed for modern day office use, but also for entertainment at home. The VG3448’s WQHD 3440 x 1440 resolution is 2.4 times higher than your standard Full HD, maximising efficiency and image detail with its increase in coverage area. The 34” screen with 21:9 aspect ratio and slim bezels bring wider viewing and make images and movies more immersive than ever. In addition to the versatile connectivity that includes DisplayPort, mini DP, two HDMI inputs as well as five USB 3.1 ports (1 up, 4 down), the VG3448 is designed with flexible ergonomic features: 40° tilt, swivel, and height adjustment. Enjoy a fun yet conscientious unboxing experience, as the packaging is environmentally friendly and set up time is minimal.

SPECIFICATIONS

LCD PANEL

• Display Size (in.): 34
• Viewable Area (in.): 34.1
• Panel Type: VA Technology
• Resolution: 3440 x 1440
• Resolution Type: UltraWide QHD
• Static Contrast Ratio: 3,000:1 (typ)
• Dynamic Contrast Ratio: 50M:1
• Light Source: LED
• Brightness: 300 cd/m2 (typ)
• Colours: 1.073G
• Colour Space Support: 10 bit (8 bit + FRC)
• Aspect Ratio: 21:9
• Response Time (Typical GTG): 5ms
• Response Time (GTG w/OD): 5ms
• Viewing Angles: 178o horizontal, 178o vertical
• Backlight Life (Hours): 40000 Hrs (Min)
• Panel Surface: Anti-Glare, Hard Coating (3H)
• Curvature: Flat
• Refresh Rate (Hz): 60
• Blue Light Filter: Yes
• Flicker-Free: Yes
• Colour Gamut: Adobe RGB: 79% size / 74% coverage (Typ)
• NTSC: 72% size (Typ)
• sRGB: 106% size / 95% coverage (Typ)
• Pixel Size: 0.233 mm (H) x 0.233 mm (V)

COMPATIBILITY

• PC Resolution (max): 3440x1440
• Mac® Resolution (max): 3440x1440
• PC Operating System: Windows 7/8/8.1/10 certified; macOS tested
• Mac® Resolution (min): 3440x1440

CONNECTOR

• USB 3.1 Type A: 4
• USB 3.1 Type B: 1
• HDMI 1.4: 2
• Display Port: 1
• Mini Display Port: 1
• Power in: 3-pin Socket (IEC C14 / CEE22)

AUDIO

Internal Speakers: 3Watts x2

POWER

• Eco Mode (Conserve): 30W
• Eco Mode (optimised): 32W
• Consumption (typical): 35W
• Consumption (max): 46W
• Voltage: AC 100-240V, 50/60 Hz
• Stand-by: 0.3W
• Power Supply: Internal

ADDITIONAL HARDWARE

• Kensington Lock Slot: 1
• Cable Organization: Yes

CONTROLS

• Physical Controls: Key 1 (eye), Key 2, Key 3, Key 4, Key 5, Key 6 (power)
• On Screen Display: Input Select, Audio Adjust, ViewMode, Colour Adjust, Manual Image Adjust, Setup Menu

OPERATING CONDITIONS

• Temperature: 32°F to 104°F (0°C to 40°C)
• Humidity (non-condensing): 20% to 90%

WALL MOUNT

VESA Compatible: 100 x 100 mm

INPUT SIGNAL

• Frequency Horizontal: 15 ~ 150KHz
• Frequency Vertical: 24 ~ 100Hz

VIDEO INPUT

Digital Sync: TMDS - HDMI (v1.4), PCI-E - DisplayPort (v1.2), PCI-E - mini DisplayPort (v1.2)

ERGONOMICS

• Height Adjust (mm): 130
• Swivel: 120o
• Tilt (Forward/Back): -5o / 40o

WEIGHT (IMPERIAL)

• Net (lbs): 19
• Net Without Stand (lbs): 13.2
• Gross (lbs): 29.5

WEIGHT (METRIC)

• Net (kg): 8.6
• Net Without Stand (kg): 6
• Gross (kg): 13.4

DIMENSIONS (IMPERIAL) (WXHXD)

• Packaging (in.): 37.2 x 9.2 x 20.7
• Physical (in.): 32.5 x 16.07~21.19 x 9.3
• Physical Without Stand (in.): 32.5 x 14.4 x 2

DIMENSIONS (METRIC) (WXHXD)

• Packaging (mm): 945 x 234 x 525
• Physical (mm): 825 x 408 x 236
• Physical Without Stand (mm): 825 x 366 x 51

GENERAL

• Regulations: cTUVus, FCC-B, ICES003, Energy Star, EPEAT, MX-CoC, Mexico Energy, CE, CE EMC, CB, RoHS, ErP, REACH, WEEE, EAC, UkrSEPRO, RCM, CCC, China RoHS, CEL
• PACKAGE CONTENTS: VG3448 x1, 3-pin Plug (IEC C13 / CEE22) x1, mini DisplayPort to DisplayPort Cable (v1.2; Male-Male) x1 for VSA/VSE/VSI, HDMI Cable (v1.4; Male-Male) x1 for VSCN, USB A/B Cable (v3.1; Male-Male) x1, Quick Start Guide x1
• Recycle/Disposal: Please dispose of in accordance with local, state or federal laws.
• Warranty: *Warranty offered may differ from market to market
• Country Of Origin: China
• Power Management: Energy Star standards, EPEAT
