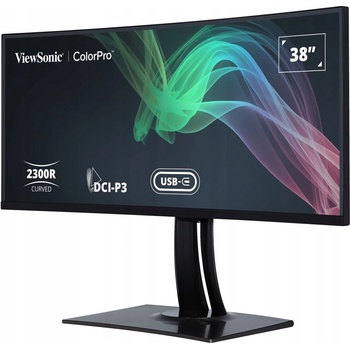

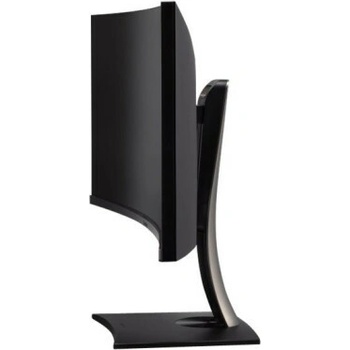

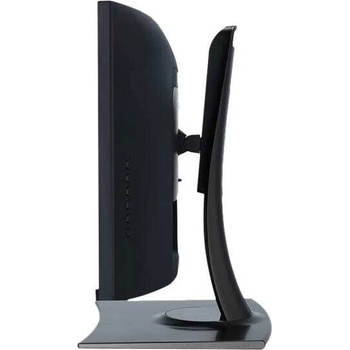

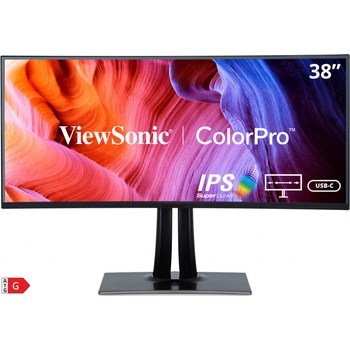

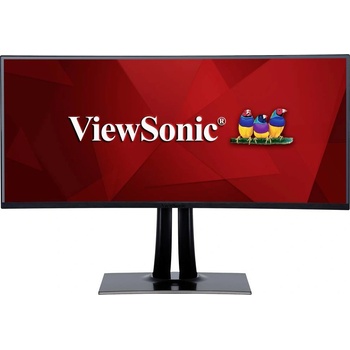

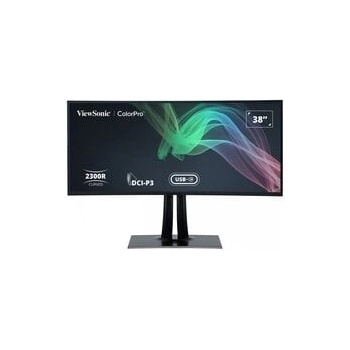

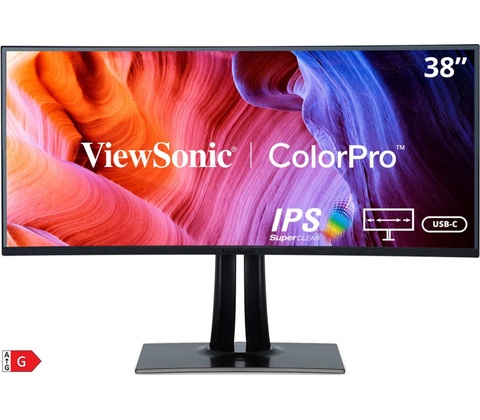

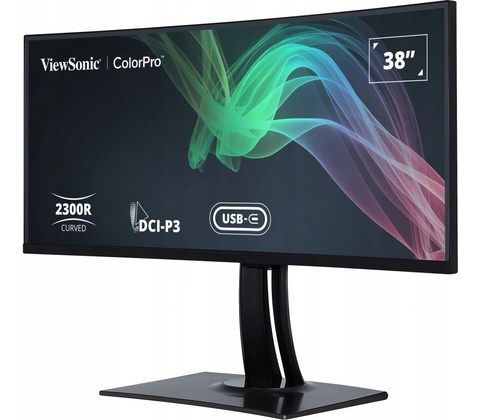

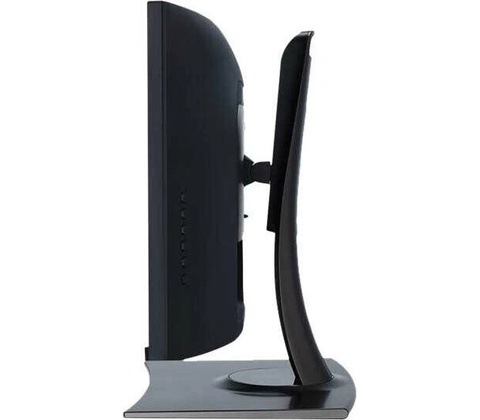

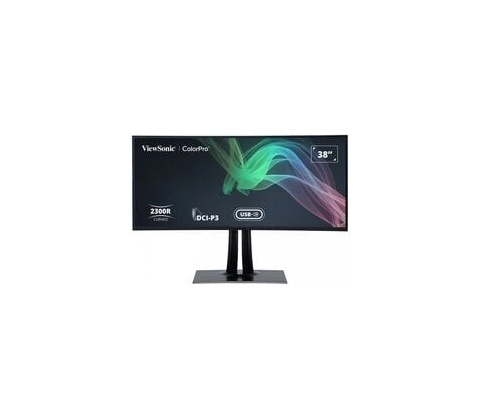

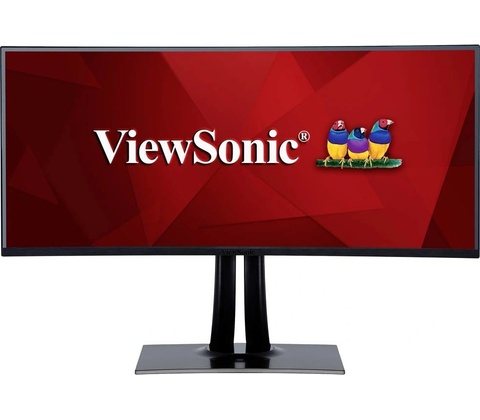

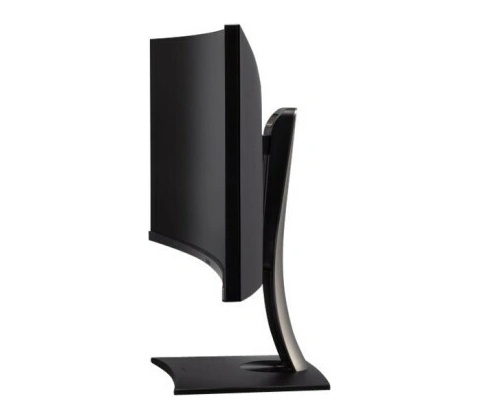

ViewSonic VP3881A

VP3881a 38” WQHD+ Pantone validated 100% sRGB Curved monitor with docking station 95% DCI-P3 & 100% sRGB wide color gamut coverage

Hardware color calibration

Delta E < 2 color accuracy

Pre-calibrated uniformity correction 21:9 aspect ratio

SPECIFICATIONS

Display

• Display Size (in.): 38
• Viewable Area (in.): 37.5
• Panel Type: IPS Technology
• Resolution: 3840 x 1600
• Resolution Type: WQHD+ (Wide QHD+)
• Static Contrast Ratio: 1,000:1 (typ)
• Dynamic Contrast Ratio: 20M:1
• Light Source: LED
• Brightness: 300 cd/m2 (typ)
• Colors: 1.07B
• Color Space Support: 10 bit (8 bit + A-FRC)
• Aspect Ratio: 21:9
• Response Time (Typical GTG): 5ms
• Response Time (GTG w/OD): 5ms
• Viewing Angles: 178o horizontal, 178o vertical
• Backlight Life (Hours): 30000 Hrs (Min)
• Curvature: 2300R
• Refresh Rate (Hz): 60
• Blue Light Filter: Yes
• Flicker-Free: Yes
• Color Gamut: Adobe RGB: 97% size / 86% coverage (Typ)
• DCI-P3: 96% size / 94% coverage (Typ)
• EBU: 129% size / 100% coverage (Typ)
• REC709: 131% size / 100% coverage (Typ)
• SMPTE-C: 141% size / 100% coverage (Typ)
• NTSC: 92% size (Typ)
• sRGB: 131% size / 100% coverage (Typ)
• Pixel Size: 0.229 mm (H) x 0.229 mm (V)
• Surface Treatment: Anti-Glare, Hard Coating (3H)

Compatibility

• PC Resolution (max): 3840x1600
• Mac® Resolution (max): 3840x1600
• PC Operating System: Windows 11 certified; macOS tested
• Mac® Resolution (min): 3840x1600

Connector

• USB 3.2 Type A Down Stream: 2
• USB 3.2 Type B Up Stream: 1
• USB 3.2 Type C Up Stream; DisplayPort Alt mode : 1
• 3.5mm Audio Out: 1
• HDMI 2.0 (with HDCP 2.2): 2
• DisplayPort: 1
• Power in: DC Socket (4 Pin)
• Ethernet LAN (RJ45): 1

Audio

Internal Speakers: 5Watts x2

Power

• Eco Mode (Conserve): 36W
• Eco Mode (optimized): 41W
• Consumption (typical): 52W
• Consumption (max): 56W
• Voltage: AC 100-240V
• Stand-by: 0.5W
• Power Supply: External Power Adaptor

Additional Hardware

• Kensington Lock Slot: 1
• Cable Organization: Yes

Controls

• Physical Controls: Key 1, Key 2, Key 3, Key 4, Key 5, Key 6 (power)
• On Screen Display: Input Select, Audio Adjust, ViewMode, Color Adjust, Manual Image Adjust, Setup Menu

Operating Conditions

• Temperature: 32°F to 104°F (0°C to 40°C)
• Humidity (non-condensing): 20% to 90%

Wall Mount

VESA Compatible: 100 x 100 mm

Input Signal

• Frequency Horizontal: 15 ~ 135KHz
• Frequency Vertical: 24 ~ 75Hz

Video Input

Digital Sync: PCI-E - DisplayPort (v1.4), TMDS - HDMI (v2.0), Micro-Packet - Type C

Ergonomics

• Height Adjust (mm): 130
• Swivel: 120o
• Tilt (Forward/Back): -1o / 21o

Weight (imperial)

• Net (lbs): 27.7
• Net Without Stand (lbs): 17.4
• Gross (lbs): 41.8

Weight (metric)

• Net (kg): 12.6
• Net Without Stand (kg): 7.9
• Gross (kg): 18.9

Dimensions (imperial) (wxhxd)

• Packaging (in.): 41.2 x 23.2 x 14.8
• Physical (in.): 35.3 x 19.65~24.77 x 11.8
• Physical Without Stand (in.): 35.3 x 15.7 x 4.1

Dimensions (metric) (wxhxd)

• Packaging (mm): 1046 x 590 x 375
• Physical (mm): 896 x 499.24~629.24 x 299
• Physical Without Stand (mm): 896 x 398 x 103

General

• Regulations: cTUVus, FCC-B, ICES003, Energy Star, EPEAT, CEC, NRCan, MX-CoC, Mexico Energy, CE, CE EMC, CB, RoHS, ErP, REACH, WEEE, EAC, UkrSEPRO, UKCA, CCC, China RoHS, China Energy Label, CECP
• PACKAGE CONTENTS: VP3881A x1, 3-pin Plug (IEC C13 / CEE22) x1, DisplayPort Cable (v1.2; Male-Male) x1, HDMI Cable (v2.0; Male-Male) x1, USB Type-C Cable (Male-Male) x1, USB A/B Cable (v3.2; Male-Male) x1, AC/DC Adapter x1, Quick Start Guide x1
• Recycle/Disposal: Please dispose of in accordance with local, state or federal laws.
• Warranty: *Warranty offered may differ from market to market
• Power Management: Energy Star standards, EPEAT
