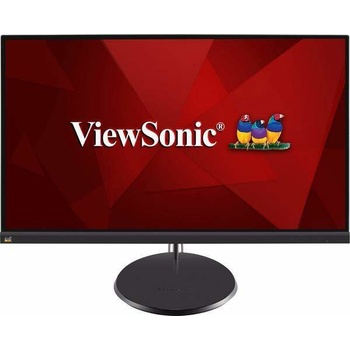

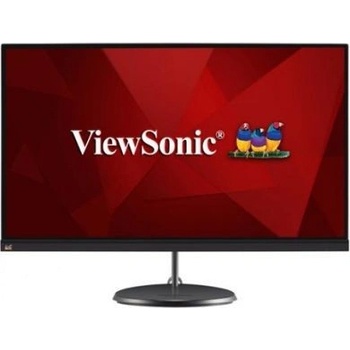

ViewSonic VX2485

24’’ iF Award Winning Monitor with USB Type-C inputs iF award winning design

Connection flexibility with USB Type-C, HDMI, and VGA

SuperClear® IPS technology

AMD FreeSync technology

TUV certificated Flicker-Free and Blue Light Filter

OVERVIEW

Elevate your home entertainment to the next level with the ViewSonic VX2485-MHU. Featuring an award-winning design with a ringed, rotational swivel for clean movement and cable management. With a SuperClear® IPS panel and a sleek frameless design, the monitor provides a near-seamless viewing experience which is ideal for multi-monitor setups. The VX2485-MHU comes with a USB Type-C port for audio/video transmission and device charging up to 60W; it is also equipped with HDMI and VGA for flexible connectivity options. In addition, the monitor features AMD FreeSync™ which can virtually eliminate screen tearing and stuttering for fluid and smooth visuals. Included in the stand design are both swivel and tilt for a more comfortable viewing experience, while the TUV certificated low blue light and flicker free filter can minimize eye fatigue. Utilizing user friendly packaging offers a quick and easy out-of-the-box set-up.

SPECIFICATIONS

DISPLAY

• Display Size (in.): 24
• Viewable Area (in.): 23.8
• Panel Type: IPS Technology
• Resolution: 1920 x 1080
• Resolution Type: FHD
• Static Contrast Ratio: 1,000:1 (typ)
• Dynamic Contrast Ratio: 80M:1
• Light Source: LED
• Brightness: 250 cd/m2 (typ)
• Colors: 16.7M
• Color Space Support: 8 bit (6 bit + A-FRC)
• Aspect Ratio: 16:9
• Response Time (Typical GTG): 5ms
• Viewing Angles: 178o horizontal, 178o vertical
• Backlight Life (Hours): 30000 Hrs (Min)
• Curvature: Flat
• Refresh Rate (Hz): 76 (Max)[1]
• Adaptive Sync: FreeSync
• Blue Light Filter: Yes
• Flicker-Free: Yes
• Color Gamut: NTSC: 72% size (Typ)
• sRGB: 102% size (Typ)
• Pixel Size: 0.275 mm (H) x 0.275 mm (V)
• Surface Treatment: Anti-Glare, Hard Coating (3H)

COMPATIBILITY

• PC Resolution (max): 1920x1080
• Mac® Resolution (max): 1920x1080
• PC Operating System: Windows 8.1/10 certified; macOS tested
• Mac® Resolution (min): 1920x1080

CONNECTOR

• VGA: 1
• 3.5mm Audio In: 1
• 3.5mm Audio Out: 1
• HDMI 1.4: 1
• Power in: External power adapter

AUDIO

Internal Speakers: 3Watts x2

POWER

• Eco Mode (Conserve): 11W
• Eco Mode (optimized): 13W
• Consumption (typical): 15.5W
• Consumption (max): 16W
• Voltage: AC 100-240V, 50/60 Hz
• Stand-by: 0.5W
• Power Supply: External

ADDITIONAL HARDWARE

• Kensington Lock Slot: 1
• Cable Organization: Yes

CONTROLS

• Physical Controls: Key 1 (favorite), Key 2, Key 3, Key 4, Key 5, Key 6 (power)
• On Screen Display: Input Select, Audio Adjust, ViewMode, Color Adjust, Manual Image Adjust, Setup Menu

OPERATING CONDITIONS

• Temperature: 32°F to 104°F (0°C to 40°C)
• Humidity (non-condensing): 20% to 90%

WALL MOUNT

VESA Compatible: 100 x 100 mm

INPUT SIGNAL

• Frequency Horizontal: 16 ~ 84KHz
• Frequency Vertical: 48 ~ 76Hz

VIDEO INPUT

• Digital Sync: TMDS - HDMI (v1.4), Micro-Packet - Type C
• Analog Sync: Separate/Composite/SOG - RGB Analog

ERGONOMICS

• Swivel: 60o
• Tilt (Forward/Back): -5o / 20o

WEIGHT (IMPERIAL)

• Net (lbs): 9.3
• Net Without Stand (lbs): 5.9
• Gross (lbs): 12.8

WEIGHT (METRIC)

• Net (kg): 4.2
• Net Without Stand (kg): 2.7
• Gross (kg): 5.8

DIMENSIONS (IMPERIAL) (WXHXD)

• Packaging (in.): 24.6 x 16.1 x 4.9
• Physical (in.): 21.2 x 15.9 x 9.8
• Physical Without Stand (in.): 21.2 x 12.7 x 2

DIMENSIONS (METRIC) (WXHXD)

• Packaging (mm): 624 x 410 x 125
• Physical (mm): 540 x 404 x 250
• Physical Without Stand (mm): 540 x 322 x 50

GENERAL

• Regulations: cTUVus, FCC-B, ICES003, Energy Star 8.0, EPEAT Bronze, CEC, NRCan, MX-CoC, Mexico Energy, RoHS, WEEE, VCCI, PSE
• PACKAGE CONTENTS: VX2485-MHU x1, 3-pin Mickey Mouse Plug (IEC C5) x1, HDMI Cable (v1.4; Male-Male) x1, USB Type-C Cable (Male-Male) x1 for VSI, AC/DC Adapter x1, Quick Start Guide x1
• Recycle/Disposal: Please dispose of in accordance with local, state or federal laws.
• Warranty: *Warranty offered may differ from market to market
