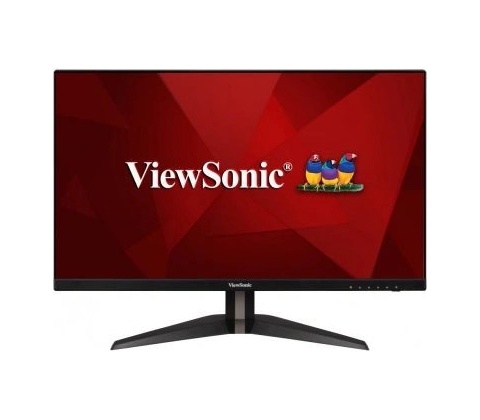

ViewSonic VX2705

VX2705-2KP-MHD 27” 144Hz QHD Gaming Monitor 144Hz refresh rate ensures clarify in motion 1ms (MPRT) response time ensures smooth images

AMD FreeSync™ Premium prevents screen tearing

QHD 1440p resolution for clear detail

SuperClear® IPS panel for vivid picture quality and wider viewing angles

OVERVIEW

With 144Hz refresh rate and SuperClear® IPS panel, the ViewSonic VX2705-2KPC-mhd provides a stunning viewing experience. A high 144Hz refresh rate delivers clarity in motion while AMD FreeSync™ Premium, virtually eliminates screen tearing and stuttering for a fluid gaming experience. With 1ms MPRT response time, the monitor delivers smooth images without ghosting. Flexible connectivity via DisplayPort and two HDMI ports make connection to other peripherals or high-end graphics cards for gaming a breeze. The VX2705-2KPC-mhd is also equipped with ViewSonic’s exclusive ViewMode™ presets, which offer user-customized game modes, including FPS, RTS and MOBA game settings.

SPECIFICATIONS

DISPLAY

• Display Size (in.): 27
• Viewable Area (in.): 27
• Panel Type: IPS Technology
• Resolution: 2560 x 1440
• Resolution Type: QHD
• Static Contrast Ratio: 1,000:1 (typ)
• Dynamic Contrast Ratio: 80M:1
• Light Source: LED
• Brightness: 350 cd/m2 (typ)
• Colors: 1.07B
• Color Space Support: 10 bit (8 bit + FRC)
• Aspect Ratio: 16:9
• Response Time (MPRT): 1ms
• Viewing Angles: 178o horizontal, 178o vertical
• Backlight Life (Hours): 30000 Hrs (Min)
• Curvature: Flat
• Refresh Rate (Hz): 144
• Adaptive Sync: FreeSync
• Blue Light Filter: Yes
• Flicker-Free: Yes
• Color Gamut: DCI-P3: 96% size (Typ), NTSC: 93% size (Typ), sRGB: 131% size (Typ)
• Pixel Size: 0.233 mm (H) x 0.233 mm (V)
• Surface Treatment: Anti-Glare, Hard Coating (3H)

COMPATIBILITY

• PC Resolution (max): 2560x1440
• Mac® Resolution (max): 2560x1440
• PC Operating System: Windows 10 certified; macOS tested
• Mac® Resolution (min): 2560x1440

CONNECTOR

• 3.5mm Audio Out: 1
• HDMI 2.0: 2
• Display Port: 1
• Power in: 3-pin Socket (IEC C14 / CEE22)

AUDIO

Internal Speakers: 2Watts x2

POWER

• Eco Mode (Conserve): 21W
• Eco Mode (optimized): 28W
• Consumption (typical): 34W
• Consumption (max): 51W
• Voltage: AC 100-240V, 50/60 Hz
• Stand-by: 0.5W
• Power Supply: Internal

ADDITIONAL HARDWARE

Kensington Lock Slot: 1

CONTROLS

• Physical Controls: Key 1 (favorite), Key 2, Key 3, Key 4, Key 5, Key 6 (power)
• On Screen Display: Input Select, Audio Adjust, ViewMode, Color Adjust, Manual Image Adjust, Setup Menu

OPERATING CONDITIONS

• Temperature: 32°F to 104°F (0°C to 40°C)
• Humidity (non-condensing): 20% to 90%

WALL MOUNT

VESA Compatible: 100 x 100 mm

INPUT SIGNAL

• Frequency Horizontal: 15 ~ 255KHz
• Frequency Vertical: 48 ~ 144Hz

VIDEO INPUT

Digital Sync: TMDS - HDMI (v2.0), PCI-E - DisplayPort (v1.2)

ERGONOMICS

Tilt (Forward/Back): -3o / 21o

WEIGHT (IMPERIAL)

• Net (lbs): 11.5
• Net Without Stand (lbs): 9.7
• Gross (lbs): 15.2

WEIGHT (METRIC)

• Net (kg): 5.2
• Net Without Stand (kg): 4.4
• Gross (kg): 6.9

DIMENSIONS (IMPERIAL) (WXHXD)

• Packaging (in.): 26.7 x 20.5 x 6
• Physical (in.): 24.1 x 17.7 x 7.9
• Physical Without Stand (in.): 24.1 x 14.5 x 2.2

DIMENSIONS (METRIC) (WXHXD)

• Packaging (mm): 677 x 520 x 152
• Physical (mm): 613 x 451 x 200
• Physical Without Stand (mm): 613 x 368 x 55

GENERAL

• Regulations: cTUVus, FCC-B, ICES003, CEC, MX-CoC, Mexico Energy, CE, CE EMC, CB, RoHS, ErP, REACH, WEEE, EAC, UkrSEPRO, BSMI, RCM, VCCI, PSE
• PACKAGE CONTENTS: VX2705-2KP-MHD x1, 3-pin Plug (IEC C13 / CEE22) x1, HDMI Cable (v2.0; Male-Male) x1, Quick Start Guide x1
• Recycle/Disposal: Please dispose of in accordance with local, state or federal laws.
• Warranty: *Warranty offered may differ from market to market
• Country Of Origin: 40
