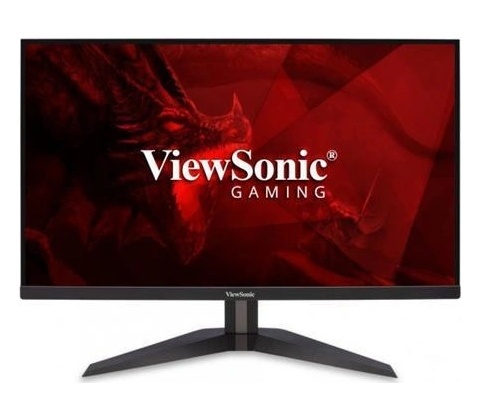

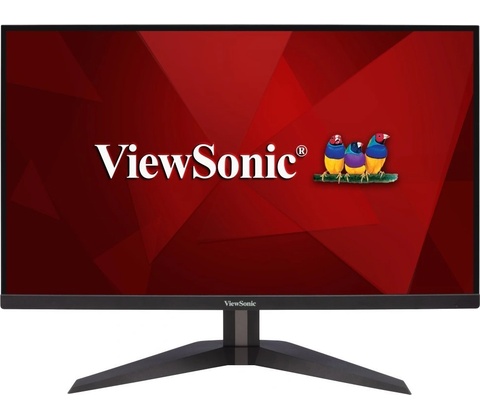

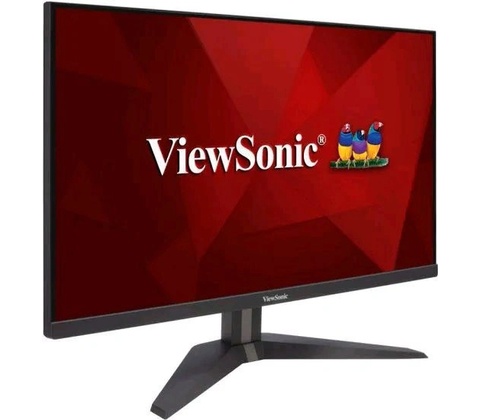

ViewSonic VX2758-2KP-MHD

OVERVIEW

The ViewSonic VX2758-2KP-mhd is a 27” QHD monitor that provides remarkable speed and vivid colours. Designed with QHD (2560 x 1440) resolution and 93% NTSC, 131% sRGB colour size, this monitor displays more on-screen content that meets and exceeds industry colour standards. With a 144Hz refresh rate, 1ms MPRT response time and Adaptive Sync support, the VX2758-2KP-mhd delivers unprecedented screen quality and speed. Flexible connectivity via DisplayPort and two HDMI ports make connection to other peripherals or high-end graphics cards for gaming a breeze. The monitor features a user-customised ViewMode to instantly activate the most suitable mode with pre-calibrated colour and luminance for each scenario, such as Game mode or Movie mode. Additionally, it comes with Flicker-Free and Blue Light Filter eye-care technology for a reliable and sincere commitment to our users’ health.

SPECIFICATIONS

DISPLAY

• Display Size (in.): 27
• Viewable Area (in.): 27
• Panel Type: IPS Technology
• Resolution: 2560 x 1440
• Resolution Type: QHD
• Static Contrast Ratio: 1,000:1 (typ)
• Dynamic Contrast Ratio: 80M:1
• Light Source: LED
• Brightness: 350 cd/m2 (typ)
• Colours: 1.07B
• Colour Space Support: 10 bit (8 bit + FRC)
• Aspect Ratio: 16:9
• Response Time (MPRT): 1ms
• Viewing Angles: 178o horizontal, 178o vertical
• Backlight Life (Hours): 30000 Hrs (Min)
• Curvature: Flat
• Refresh Rate (Hz): 144
• Adaptive Sync: FreeSync
• Blue Light Filter: Yes
• Flicker-Free: Yes
• Colour Gamut: DCI-P3: 96% size (Typ)
• NTSC: 93% size (Typ)
• sRGB: 131% size (Typ)
• Pixel Size: 0.233 mm (H) x 0.233 mm (V)
• Surface Treatment: Anti-Glare, Hard Coating (3H)

COMPATIBILITY

• PC Resolution (max): 2560x1440
• Mac® Resolution (max): 2560x1440
• PC Operating System: Windows 10 certified; macOS tested
• Mac® Resolution (min): 2560x1440

CONNECTOR

• 3.5mm Audio Out: 1
• HDMI 2.0: 1
• HDMI 1.4: 1
• Display Port: 1
• Power in: 3-pin Socket (IEC C14 / CEE22)

AUDIO

Internal Speakers: 2.5Watts x2

POWER

• Eco Mode (Conserve): 32W
• Eco Mode (optimised): 35W
• Consumption (typical): 38W
• Consumption (max): 43W
• Voltage: AC 100-240V, 50/60 Hz
• Stand-by: 0.5W
• Power Supply: Internal

ADDITIONAL HARDWARE

Kensington Lock Slot: 1

CONTROLS

• Physical Controls: Key 1 (favorite), Key 2, Key 3, Key 4, Key 5, Key 6 (power)
• On Screen Display: Input Select, Audio Adjust, ViewMode, Colour Adjust, Manual Image Adjust, Setup Menu

OPERATING CONDITIONS

• Temperature: 32°F to 104°F (0°C to 40°C)
• Humidity (non-condensing): 20% to 90%

WALL MOUNT

VESA Compatible: 100 x 100 mm

INPUT SIGNAL

• Frequency Horizontal: 30 ~ 240KHz
• Frequency Vertical: 48 ~ 146Hz

VIDEO INPUT

Digital Sync: TMDS - HDMI (v1.4), TMDS - HDMI (v2.0), PCI-E - DisplayPort (v1.2)

ERGONOMICS

Tilt (Forward/Back): -5o / 15o

WEIGHT (IMPERIAL)

• Net (lbs): 11.6
• Net Without Stand (lbs): 9.7
• Gross (lbs): 15.5

WEIGHT (METRIC)

• Net (kg): 5.3
• Net Without Stand (kg): 4.4
• Gross (kg): 7.1

DIMENSIONS (IMPERIAL) (WXHXD)

• Packaging (in.): 26.6 x 17.7 x 6.9
• Physical (in.): 24.2 x 17.7 x 7.4
• Physical Without Stand (in.): 24.2 x 14.4 x 2

DIMENSIONS (METRIC) (WXHXD)

• Packaging (mm): 675 x 450 x 174
• Physical (mm): 615 x 450 x 189
• Physical Without Stand (mm): 615 x 365 x 50

GENERAL

• Regulations: cTUVus, FCC-B, ICES003, CEC, MX-CoC, Mexico Energy, CE, CE EMC, CB, RoHS, ErP, REACH, WEEE, EAC, UkrSEPRO, RCM, VCCI, PSE, CCC, China RoHS, CEL
• PACKAGE CONTENTS: VX2758-2KP-MHD x1, 3-pin Plug (IEC C13 / CEE22) x1, HDMI Cable (v2.0; Male-Male) x1, Quick Start Guide x1
• Recycle/Disposal: Please dispose of in accordance with local, state or federal laws.
• Warranty: *Warranty offered may differ from market to market
• Country Of Origin: China
