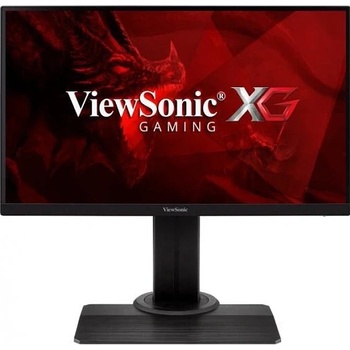

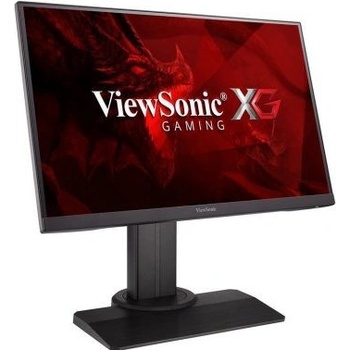

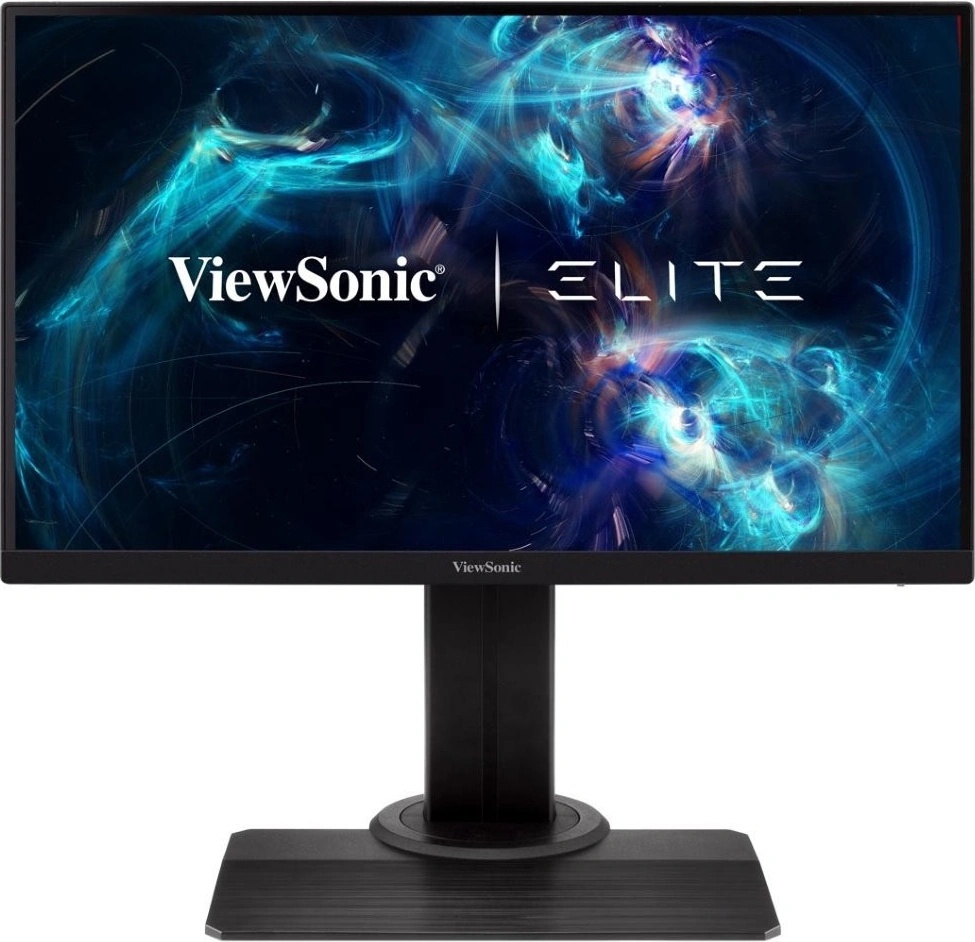

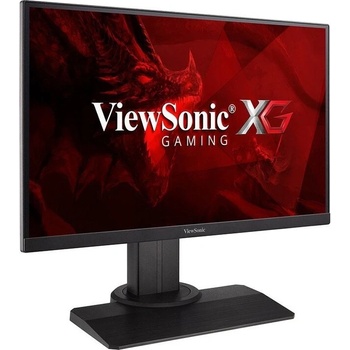

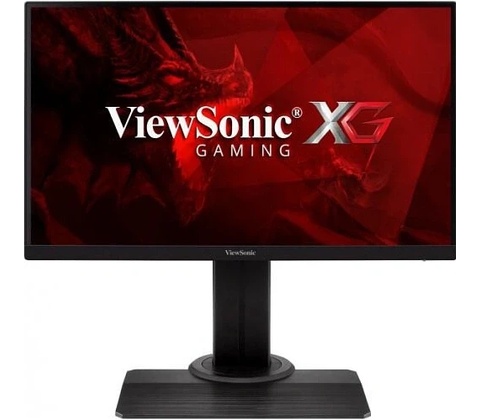

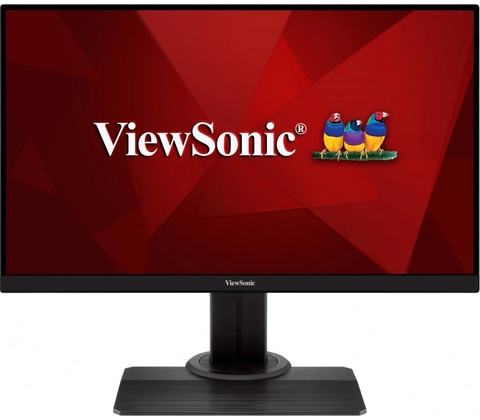

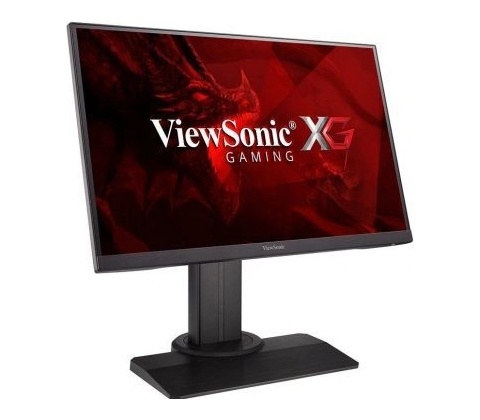

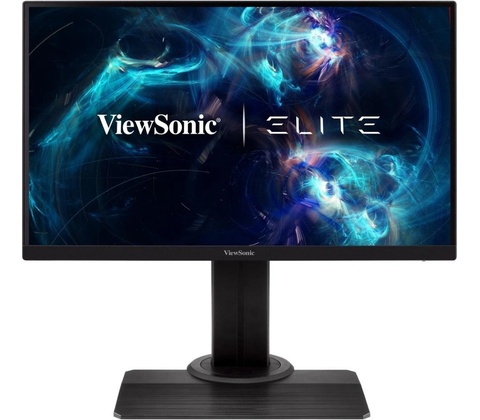

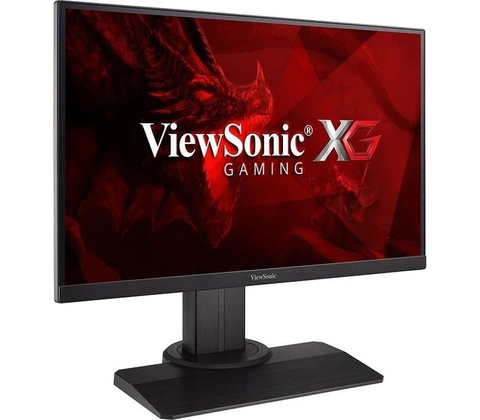

ViewSonic XG2405

OVERVIEW

The ViewSonic® XG2405 is a 24” IPS-panel gaming monitor with 1ms response time, a 144Hz refresh rate, and AMD FreeSync technology, providing the perfect blend of speed, hyper-responsive control, and vivid IPS colours. Engineered for hardcore a OVERVIEW

The ViewSonic® XG2405 is a 24” IPS-panel gaming monitor with 1ms response time, a 144Hz refresh rate, and AMD FreeSync technology, providing the perfect blend of speed, hyper-responsive control, and vivid IPS colours. Engineered for hardcore and casual gamers alike, the XG2405's sleek, 3-side borderless, ergonomic design make it the ideal choice for any gaming setup.

SPECIFICATIONS

LCD PANEL

• Display Size (in.): 24
• Viewable Area (in.): 23.8
• Panel Type: IPS Technology
• Resolution: 1920 x 1080
• Resolution Type: FHD
• Static Contrast Ratio: 1,000:1 (typ)
• Dynamic Contrast Ratio: 80M:1
• Light Source: LED
• Brightness: 250 cd/m2 (typ)
• Colours: 16.7M
• Colour Space Support: 8 bit (6 bit + Hi-FRC)
• Aspect Ratio: 16:9
• Response Time (Typical GTG): 1ms
• Viewing Angles: 178o horizontal, 178o vertical
• Backlight Life (Hours): 30000 Hrs (Min)
• Curvature: Flat
• Refresh Rate (Hz): 144
• Adaptive Sync: FreeSync
• Blue Light Filter: Yes
• Flicker-Free: Yes
• Colour Gamut: NTSC: 72% size (Typ)
• sRGB: 104% size (Typ)
• Pixel Size: 0.275 mm (H) x 0.275 mm (V)
• Surface Treatment: Anti-Glare, Hard Coating (3H)

COMPATIBILITY

• PC Resolution (max): 1920x1080
• Mac® Resolution (max): 1920x1080
• PC Operating System: Windows 10 certified; macOS tested
• Mac® Resolution (min): 1920x1080

CONNECTOR

• 3.5mm Audio Out: 1
• HDMI 1.4: 2
• Display Port: 1
• Power in: 3-pin Socket (IEC C14 / CEE22)

AUDIO

Internal Speakers: 2Watts x2

POWER

• Eco Mode (Conserve): 17W
• Eco Mode (Optimised): 21W
• Consumption (typical): 24W
• Consumption (max): 30W
• Voltage: AC 100-240V, 50/60 Hz
• Stand-by: 0.5W
• Power Supply: Internal

ADDITIONAL HARDWARE

• Kensington Lock Slot: 1
• Cable Organisation: Yes

CONTROLS

• Physical Controls: Key 1 (favorite), Key 2, Key 3, Key 4, Key 5 (power)
• On Screen Display: Input Select, Audio Adjust, ViewMode, Color Adjust, Manual Image Adjust, Setup Menu

OPERATING CONDITIONS

• Temperature: 32°F to 104°F (0°C to 40°C)
• Humidity (non-condensing): 20% to 90%

WALL MOUNT

VESA Compatible: 100 x 100 mm

INPUT SIGNAL

• Frequency Horizontal: 30 ~ 180KHz
• Frequency Vertical: 47 ~ 144Hz

VIDEO INPUT

Digital Sync: TMDS - HDMI (v1.4), PCI-E - DisplayPort (v1.2)

ERGONOMICS

• Height Adjust (mm): 120
• Swivel: 90o
• Tilt (Forward/Back): -5o / 20o
• Pivot (Right/Left): 90o / 0o

WEIGHT (METRIC)

• Net (kg): 6.7
• Net Without Stand (kg): 3.4
• Gross (kg): 8.4

DIMENSIONS (METRIC) (WXHXD)

• Packaging (mm): 699 x 402 x 182
• Physical (mm): 540 x 521 x 239
• Physical Without Stand (mm): 540 x 325 x 43

GENERAL

• Regulations: CE, CE EMC, CB, RoHS, ErP, REACH, WEEE, EAC, UkrSEPRO, BSMI, RCM, GEMS, VCCI, PSE, KC, e-Standby, BIS, CCC, China RoHS, CEL
• PACKAGE CONTENTS: XG2405 x1, 3-pin Plug (IEC C13 / CEE22) x1, HDMI Cable (v1.4; Male-Male) x1, Quick Start Guide x1
• Recycle/Disposal: Please dispose of in accordance with local, state or federal laws.
• Warranty: *Warranty offered may differ from market to market
