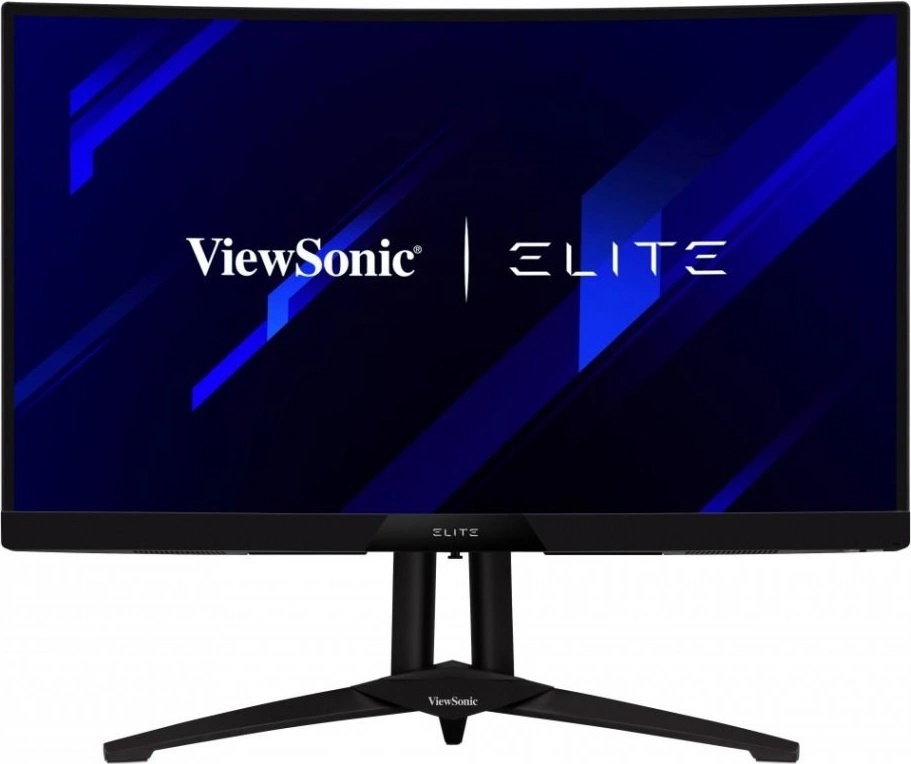

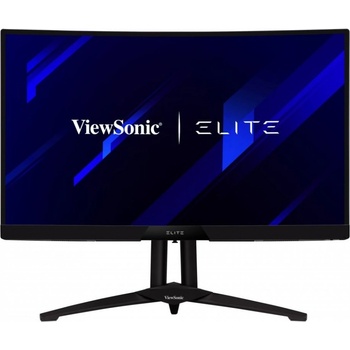

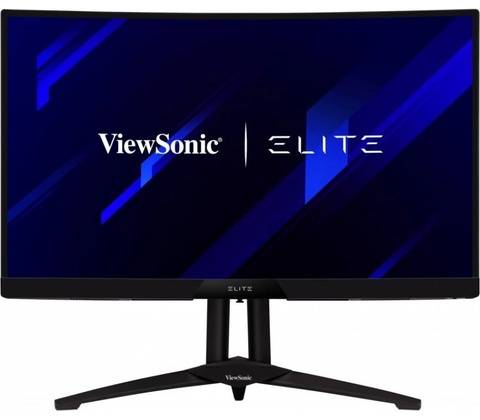

ViewSonic XG270QC

XG270QC 27” 165Hz QHD Curved Gaming Monitor

AMD Freesync™ Premium Pro

PureXP™ Motion Blur Reduction

ELITE Design Enhancements (EDE)

VESA HDR 400

ELITE RGB

OVERVIEW

With a hyper-responsive 165Hz refresh rate, curved 3-side borderless design, QHD resolution, and AMD FreeSync Premium Pro, the ELITE XG270QC brings next-gen excitement to reality. By uniting the core principles of our engineering philosophy, gamer-driven innovation and minimalist design, the ELITE XG270QC is equipped to be your next gaming monitor.

SPECIFICATIONS

DISPLAY

• Display Size (in.): 27
• Viewable Area (in.): 27
• Panel Type: VA Technology
• Resolution: 2560 x 1440
• Resolution Type: QHD
• Static Contrast Ratio: 3,000:1 (typ)
• Dynamic Contrast Ratio: 120M:1
• Light Source: LED
• Brightness: 550 cd/m2 (typ)
• Colors: 16.7M
• Color Space Support: 8 bit true
• Aspect Ratio: 16:9
• Response Time (MPRT): 1ms
• Viewing Angles: 178o horizontal, 178o vertical
• Backlight Life (Hours): 30000 Hrs (Min)
• Curvature: 1500R
• Refresh Rate (Hz): 165
• Adaptive Sync: FreeSync
• Blue Light Filter: Yes
• Flicker-Free: Yes
• Color Gamut: DCI-P3: 90% size (Typ), NTSC: 85% size (Typ), sRGB: 120% size (Typ)
• Pixel Size: 0.233 mm (H) x 0.233 mm (V)
• Surface Treatment: Anti-Glare, Hard Coating (2H)

COMPATIBILITY

• PC Resolution (max): 2560x1440
• Mac® Resolution (max): 2560x1440
• PC Operating System: Windows 7/8/10 certified; macOS tested
• Mac® Resolution (min): 2560x1440

CONNECTOR

• USB 3.1 Type A: 3
• USB 3.1 Type B: 1
• 3.5mm Audio Out: 1
• HDMI 2.0 (with HDCP 2.2): 2
• Display Port: 1
• Power in: External power adapter
• Micro USB: 1

AUDIO

Internal Speakers: 3Watts x2

POWER

• Eco Mode (Conserve): 33W
• Eco Mode (optimized): 45W
• Consumption (typical): 55W
• Consumption (max): 59W
• Voltage: AC 100-240V, 50/60 Hz
• Stand-by: 0.5W
• Power Supply: External

ADDITIONAL HARDWARE

• Kensington Lock Slot: 1
• Cable Organization: Yes

CONTROLS

• Physical Controls: Joystick key: Up, Right, Down, Left, Center; Quick Access; Power
• On Screen Display: Game Modes, Display, Input Select, ViewMode, Audio Adjust, Setup Menu

OPERATING CONDITIONS

• Temperature: 32°F to 104°F (0°C to 40°C)
• Humidity (non-condensing): 20% to 90%

WALL MOUNT

VESA Compatible: 100 x 100 mm

INPUT SIGNAL

• Frequency Horizontal: HDMI (v2.0): 30 ~ 230KHz, DisplayPort (v1.4): 30 ~ 250KHz
• Frequency Vertical: HDMI (v2.0): 48 ~ 144Hz, DisplayPort (v1.4): 48 ~ 165Hz

VIDEO INPUT

Digital Sync: TMDS - HDMI (v2.0), PCI-E - DisplayPort (v1.4)

ERGONOMICS

• Height Adjust (mm): 120
• Swivel: 50o
• Tilt (Forward/Back): -5o / 23o

WEIGHT (IMPERIAL)

• Net (lbs): 16.6
• Net Without Stand (lbs): 10.8
• Gross (lbs): 24.4

WEIGHT (METRIC)

• Net (kg): 7.5
• Net Without Stand (kg): 4.9
• Gross (kg): 11.1

DIMENSIONS (IMPERIAL) (WXHXD)

• Packaging (in.): 28.5 x 20.7 x 11
• Physical (in.): 24.1 x 18.97~23.69 x 14
• Physical Without Stand (in.): 24.1 x 14.6 x 4

DIMENSIONS (METRIC) (WXHXD)

• Packaging (mm): 725 x 525 x 280
• Physical (mm): 612 x 481.8~601.8 x 356
• Physical Without Stand (mm): 612 x 372 x 103

GENERAL

• Regulations: cTUVus, FCC-B, ICES003, CEC, MX-CoC, Mexico Energy, CE, CE EMC, CB, RoHS, ErP, REACH, WEEE, EAC, UkrSEPRO, BSMI, CCC, China RoHS, China Energy Label
• PACKAGE CONTENTS: XG270QC x3-pin Mickey Mouse Plug (IEC C5), 3-pin Mickey Mouse Plug (IEC C5) x1, DisplayPort Cable (v1.2; Male-Male) x1, USB A/B Cable (v3.2; Male-Male) x1
• Recycle/Disposal: Please dispose of in accordance with local, state or federal laws.
• Warranty: *Warranty offered may differ from market to market
• Country Of Origin: China
