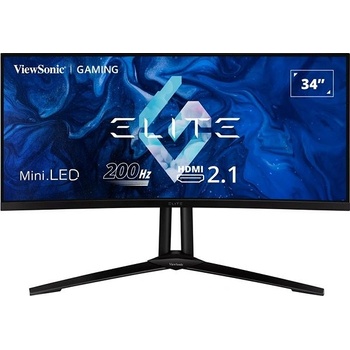

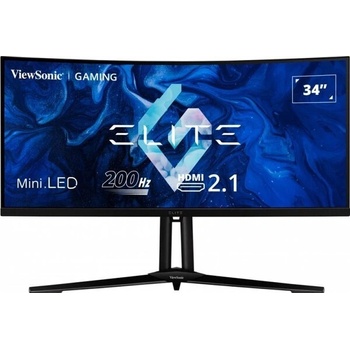

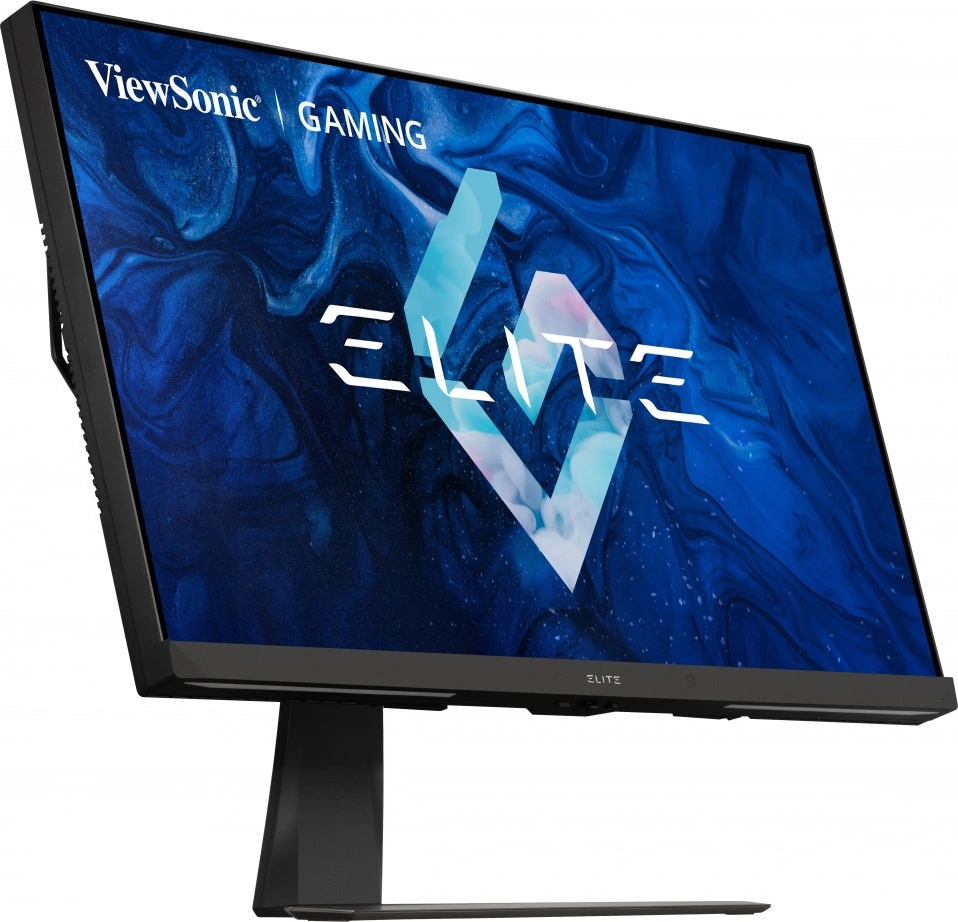

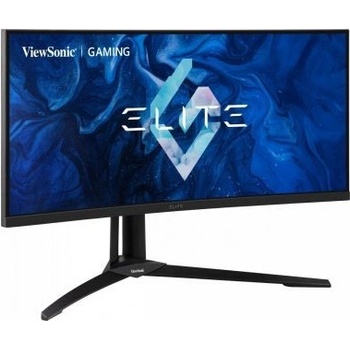

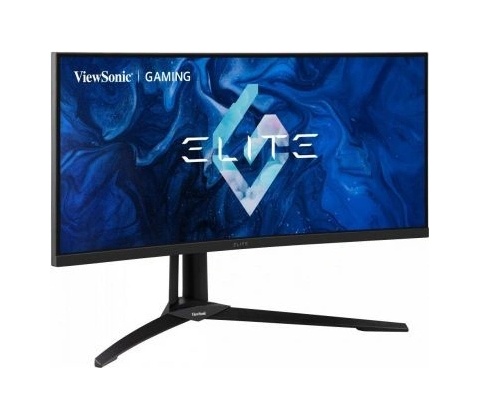

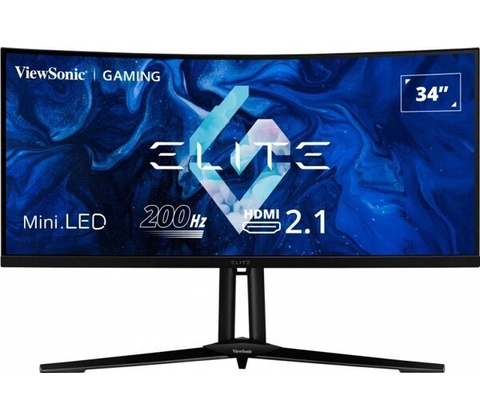

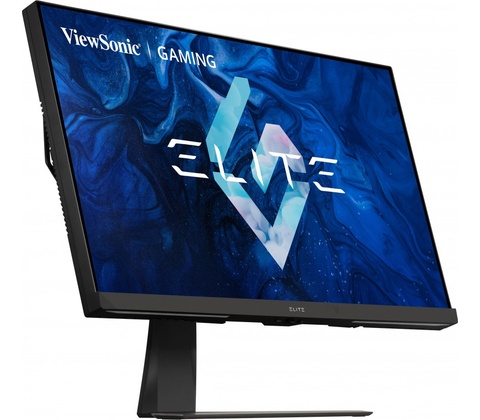

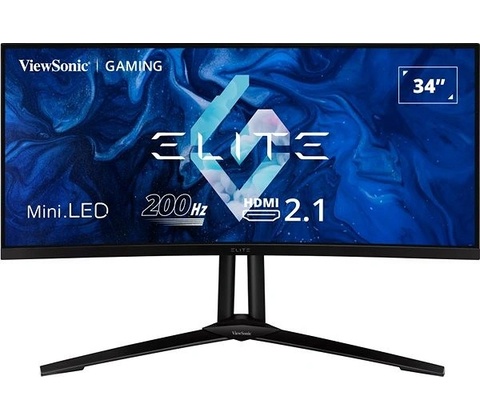

ViewSonic XG341C-2K

OVERVIEW

Experience a new level of visual performance and upgrade your gameplay on the XG321UG, featuring Mini LED technology that redefines expectations. Engineered with a pixel dense 4K Ultra HD resolution that renders every detail with incredible brightness on our VESA certified DisplayHDR™ 1400 panel. Geared with a rapid 144Hz refresh rate for ultrasmooth gameplay, and a 3ms (GTG) response time to reduce in-game ghosting. Equipped with NVIDIA® G-Sync Ultimate to handle even the most intense action scenes and paired with NVIDIA® Reflex for extreme low latency.

SPECIFICATIONS

Display

• Display Size (in.): 32
• Viewable Area (in.): 32
• Panel Type: IPS Technology
• Resolution: 3840 x 2160
• Resolution Type: UHD (Ultra HD)
• Static Contrast Ratio: 1,000:1 (typ)
• Dynamic Contrast Ratio: 120M:1
• Light Source: mini LED
• Brightness: 400; 1400 (w/ HDR Peak (Min))
• Colors: 1.07B
• Color Space Support: 10 bit true (max; input port and video format)
• Aspect Ratio: 16:9
• Response Time (Typical GTG): 3ms
• Viewing Angles: 178o horizontal, 178o vertical
• Backlight Life (Hours): 30000 Hrs (Min)
• Curvature: Flat
• Refresh Rate (Hz): 144
• Adaptive Sync: G-Sync
• Blue Light Filter: Yes
• Flicker-Free: Yes
• Color Gamut: Adobe RGB: 99% coverage (Typ)
• DCI-P3: 98% coverage (Typ)
• NTSC: 113% size (Typ)
• sRGB: 160% size / 100% coverage (Typ)
• Pixel Size: 0.185 mm (H) x 0.185 mm (V)
• Surface Treatment: Anti-Glare, Hard Coating (3H)

Compatibility

• PC Resolution (max): 3840x2160
• Mac® Resolution (max): 3840x2160
• PC Operating System: Windows 10/11 certified; macOS tested
• Mac® Resolution (min): 3840x2160

Connector

• USB 3.2 Type A Down Stream: 3
• USB 3.2 Type B Up Stream: 1
• 3.5mm Audio Out: 1
• HDMI 2.0 (with HDCP 2.2): 3
• DisplayPort: 1
• Power in: DC Socket (Center Positive)

Audio

Internal Speakers: 5Watts x2

Power

• Eco Mode (Conserve): 65.2W
• Eco Mode (optimized): 71.5W
• Consumption (typical): 80.5W
• Consumption (max): 84.5W
• Voltage: AC 100-240V
• Stand-by: 0.5W
• Power Supply: External Power Adaptor

Additional Hardware

• Kensington Lock Slot: 1
• Cable Organization: Yes

Controls

• Physical Controls: Joystick key: Up, Right, Down, Left, Center; Quick Access; Power
• On Screen Display: Game Modes, Display, G-SYNC® Processor, Input Select, Audio Adjust, Setup Menu

Operating Conditions

• Temperature: 32°F to 104°F (0°C to 40°C)
• Humidity (non-condensing): 20% to 90%

Wall Mount

VESA Compatible: 100 x 100 mm

Input Signal

• Frequency Horizontal: HDMI (v2.0): 30 ~ 150KHz, DisplayPort (v1.4): 255 ~ 255KHz
• Frequency Vertical: HDMI (v2.0): 24 ~ 144Hz, DisplayPort (v1.4): 1 ~ 144Hz

Video Input

Digital Sync: TMDS - HDMI (v2.0), PCI-E - DisplayPort (v1.4)

Ergonomics

• Height Adjust (mm): 120
• Swivel: 50o
• Tilt (Forward/Back): -5o / 20o

Weight (imperial)

• Net (lbs): 23.8
• Net Without Stand (lbs): 17.1
• Gross (lbs): 35.1

Weight (metric)

• Net (kg): 10.8
• Net Without Stand (kg): 7.8
• Gross (kg): 15.9

Dimensions (imperial) (wxhxd)

• Packaging (in.): 33.5 x 20.7 x 12.9
• Physical (in.): 28.6 x 18.99~23.71 x 10.4
• Physical Without Stand (in.): 28.6 x 17 x 3.7

Dimensions (metric) (wxhxd)

• Packaging (mm): 850 x 527 x 327
• Physical (mm): 726 x 482.3~602.3 x 265
• Physical Without Stand (mm): 726 x 432 x 93

General

• Regulations: cTUVus, FCC-B, ICES003, CEC, NRCan, NOM, Mexico Energy, CE, CE EMC, CB, RoHS, ErP, REACH, WEEE, EAC, UkrSEPRO, UKCA, RCM, CCC, China RoHS, China Energy Label
• PACKAGE CONTENTS: XG321UG x1, 3-pin Plug (IEC C13 / CEE22) x1, HDMI Cable (v2.0; Male-Male) x1, DisplayPort Cable (v1.4; Male-Male) x1, USB A/B Cable (v3.2; Male-Male) x1, AC/DC Adapter x1, Quick Start Guide x1
• Recycle/Disposal: Please dispose of in accordance with local, state or federal laws.
• Warranty: *Warranty offered may differ from market to market
