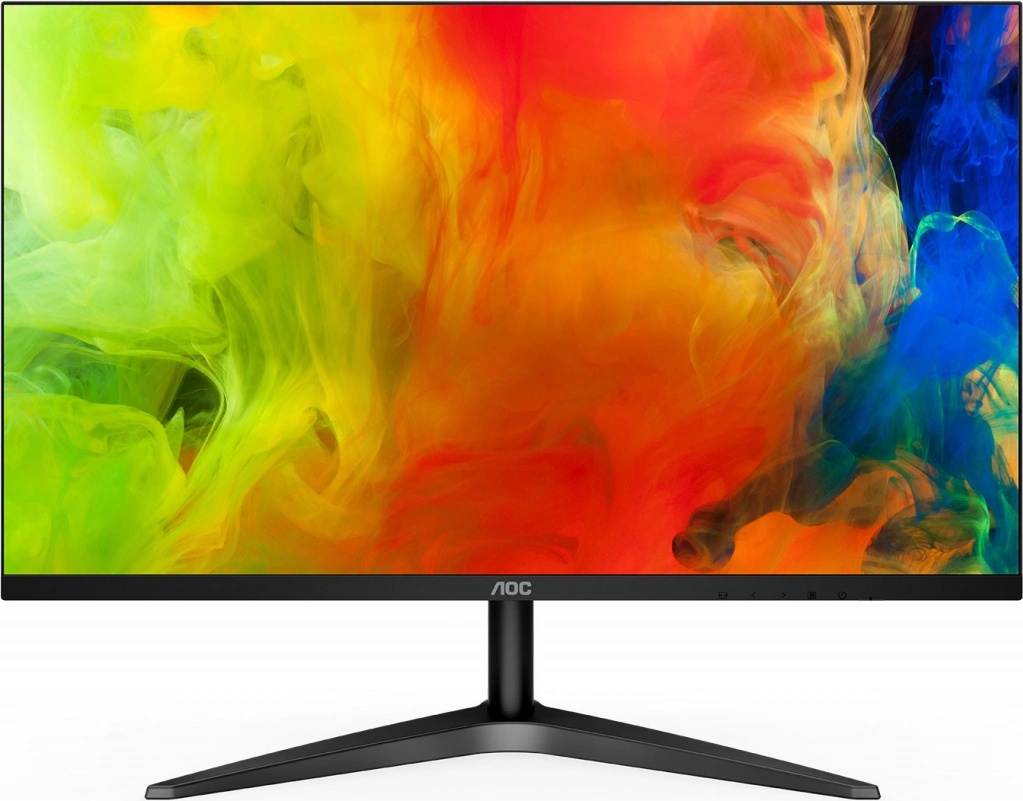

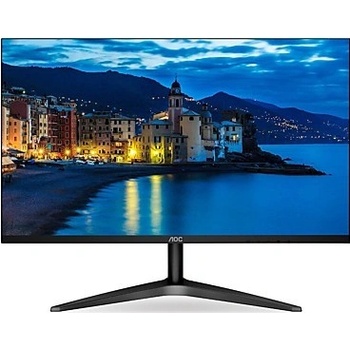

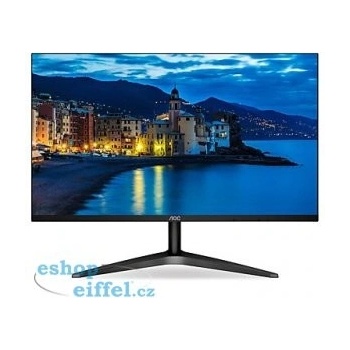

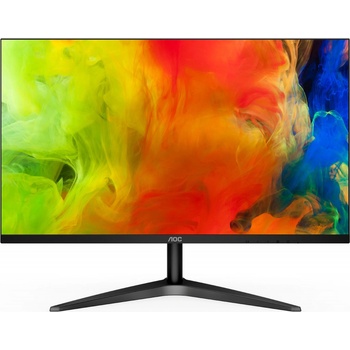

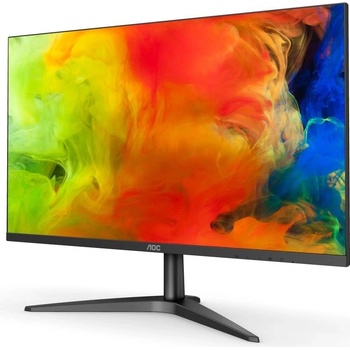

AOC 24B1XH

24B1XHS 23.8 inch IPS, Low Blue Mode, Flicker Free, Ultra Narrow Border Monitor

Introducing AOC’s 23.8" 24B1XHS in Full HD (1920 x 1080) resolution. This IPS panel display keeps it simple but sleek, with an ultra-slim frameless design to suit any desk or room while taking up minimal space. Its useful features include Flicker Free and AOC Low Blue Mode for eye protection, HDMI connectivity, VESA mount compatibility, i-Menu for easy on-screen OSD setting adjustments, and more.

IPS Panel

IPS panels deliver vivid and accurate color expression while offering wider viewing angles than regular monitors for extra comfortable viewing.

Flicker Free

Flicker Free technology uses a smooth backlight system to prevent monitor flickering. This reduces eye strain and other damaging effects to your eyes – an especially valuable feature when working overtime, gaming for long hours or watching movies.

Low Blue Mode

Long exposure to short wavelength blue light may cause eye strain, sleep disorders, or headaches. AOC Low Blue Mode puts the user first by reducing the screen’s short wavelength blue light emission without sacrificing color accuracy. Also provides four different filtering modes – reading, web browsing, multimedia, and office.

Narrow Bezel, Narrow Black Border

Slim bezel and border monitors offer a comforting viewing experience without distraction. They also save space and can boost productivity via multi-monitor setups. This monitor comes with a 1.5mm ultra-narrow bezel and 3.7mm black screen border.

Multimedia-Ready with HDMI Input

HDMI compatibility unlocks a wider array of connectivity options for users, including gaming consoles, laptops, Blu-Ray players, and more. i-Menu

Adjust your settings with i-Menu, which conveniently allows you to change on-screen display settings (OSD) with your mouse instead of having to press buttons on the device itself.

Technical Specification

Panel Size 23.8" / 604.7mm

Pixel Pitch (mm) 0.2745 (H) × 0.2745 (V)

Effective Viewing Area (mm) 527.04 (H) × 296.46 (V)

Brightness (typical) 250 cd/m2

Contrast Ratio 1000 : 1 (Typical) 20 Million : 1(DCR)

Response 7ms (GtG(BW))

Viewing Angle 178° (H) / 178° (V) (CR > 10)

Color Gamut NTSC 80.2% (CIE1976) / sRGB 97.6% (CIE1931)

Optimum Resolution 1920 x 1080 @ 60Hz

Display Colors 16.7 Million

Signal Input VGA, HDMI 1.4

Power Supply 19V DC, 1.31A

Smart Power Mode(typical) 25W

Built-in Speakers no

Regulatory Approvals BSMI / KC / KCC / e-Standby / RCM / MEPS / CE / CB / FCC

Wall-Mount 75mm × 75mm

Cabinet Color Black

Adjustable Stand Tilt : - 4° ~ 21.5°

Product with Stand (mm) 419.9 (H) × 540.8 (W) × 186.8 (D)

Packaging (mm) 488 (H) × 604 (W) × 124 (D)

Weight (Net /Gross) kg 3.05 / 4.76
