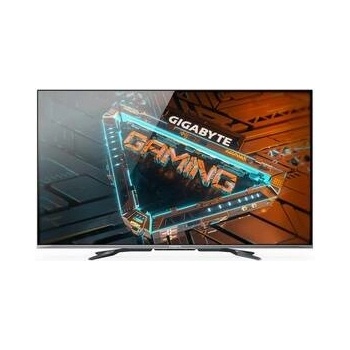

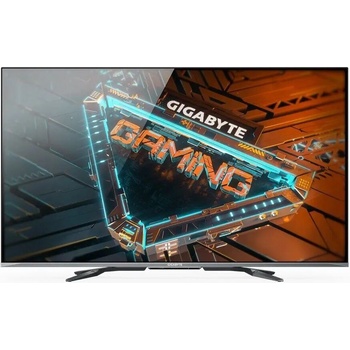

Gigabyte S55U

S55U Gaming Monitor

GIGABYTE S55U is a 54.6-inch QD display with UHD resolution and equipped with the latest HDMI 2.1, 120Hz refresh rate for the most fluid gaming experience and awesome picture quality. The 10-bit color and wide color gamut of 96% DCI-P3 offer outstanding color accuracy and consistecy. Built-in streaming services provide numerous movies and tv shows and it's also customizable to download your desirable applications from the Android system. No matter it's for gaming or any other entertainment activities, S55U can fulfill them all!

TECHNICAL SPECIFICATIONS

Panel Size (diagonal) 54,6” VA

Display Viewing Area (H x V) 1209.6 x 680.4 mm

Panel Backlight/ Type

Direct

Display Surface (non-glare/glare)

Anti-glare (Haze 3%)

Color Saturation 96% DCI-P3 / 140% sRGB

True Resolution 3840 x 2160(UHD)

Pixel Pitch (H x V) 0.315(H) x 0.315(V) mm

Brightness 500 cd/m2(TYP), 1500cd/m2 (PEAK)

Contrast Ratio 5000:1

Viewing Angle (H / V) 178°(H)/178°(V)

Display Colors 1.07 bits

Response Time 2ms GTG(min.)/ 5ms GTG(avg.)

Refresh Rate 120Hz

V-Sync

FreeSync Premium

HDR

Dolby Vision/HDR10/HDR10+/HLG

Flicker-free

N/A

HBR3

N/A

Connectivity 2 x HDMI 2.1 (48G, eARC) 2 x HDMI 2.0 1 x USB 3.2 Gen 1 Downstream ports 1 x USB 3.2 Gen 1 Upstream port 1 x USB 2.0 1 x Earphone Jack 1 x Ethernet 1 x Wireless 802.11ac 2.4GHz/5GHz 1 x Bluetooth

Speaker 10W x 2

Audio

Dolby Atmos/ DTS HD

Digital Audio Output

Optical Fiber x1

Light sensor

Yes

Unique Features

Aim Stabilizer Sync

Black Equalizer

Crosshair

Refresh Rate

Timer 6-axis Color Control

HDMI CEC

Noise Reduction

Parental Control

Local Dimming 132

Sound Modes

Standard / Movie / Sports / Music / Speech / Late Night

OS

Android OS (with Google Assistant)

App Store

Google Play

Power Type

Power Board Build-in

Power Consumption 83W

Power Saving Mode 0.5W

Power Off Mode 0.3W

Voltage 100~240Vac

Tilt (angle)

N/A

Swivel (angle)

N/A

Pivot (angle/direction)

N/A

Height Adjusment (mm)

N/A

VESA Wall Mounting (mm) 400*300 mm

Kensington lock

N/A

Phys. Dimension with Stand (W x H x D) 1232*749*309mm

Phys. Dimension w/o stand (W x H x D) 1232*717*98mm

Box Dimension (W x H x D) 1366*169*855mm

Net Weight (Esti.) 5.2 kg

Net Weight with stand (Esti.) 18.1kg

Net Weight without stand (Esti.) 16.9kg

Gross Weight (Esti.) 25.3kg

Accessories

Power cable/HDMI cable/QSG/Warranty card
