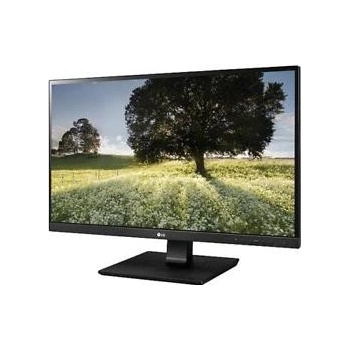

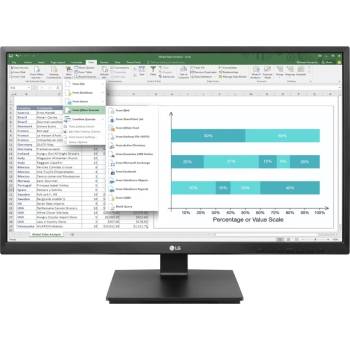

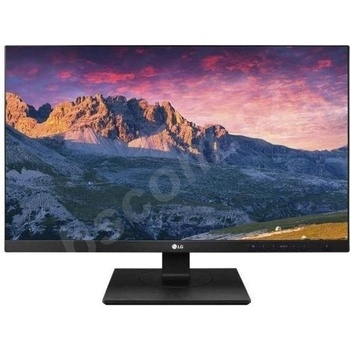

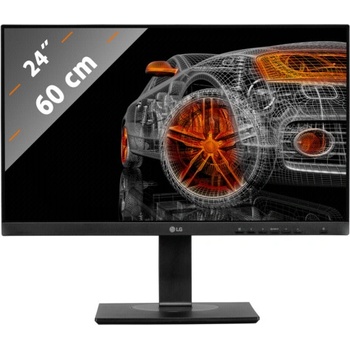

LG 24BK750Y

Size 24" Class (23.8" diag)

Panel Type IPS

Color Gamut (CIE1976) 72%

Color Depth (Number of Colors) 16.7M

Pixel Pitch (mm) 0.2745 x 0.2745

Aspect Ratio 16 : 9

Resolution 1920 x 1080

Brightness (Typ.) 250 cd/m2

• Contrast Ratio (Original) 1000:1
• (DFC) 5000000 : 1

Response Time (GTG) 5ms

Viewing Angle (CR=10) 178/178

Surface Treatment (Glare/non Glare) Anti-Glare 3H

SIGNAL (INPUT)

DVI Yes

Display Port Yes(1.2)

HDMI Yes (1.4) [ Jack Location ] Vertical

DisplayPort Out Yes

PC Audio In Yes

Headphone Out Yes

USB USB 3.0 (1 up 4 down, one for quick charging)

Speaker Type 2ch Stereo

Audio output (watt) 1.2W x 2

POWER

Type Built-in

Input 100~240V (50/60Hz)

Output 52W

Normal On (EPA) 17.1W

Normal On (typ. / outgoing)) 23W

Sleep Mode (Max) 0.5W

DC Off(Max) 0.003W

FREQUENCY

H-Frequency (DVI-D) 30 ~ 83kHz

V-Frequency (DVI-D) 56 ~ 75Hz

H-Frequency (HDMI) 30~83kHz

V-Frequency (HDMI) PC: 56~75Hz, AV: 50~61Hz

H-Frequency (DisplayPort) 30~83kHz

V-Frequency (DisplayPort) 56~75Hz

DVI-D 1920 x 1080

DisplayPort 1920 x 1080

HDMI 1920 x 1080

DisplayPort Out Dependent on connected display resolution

CONTROL KEY

Key Number 7

Key Description MENU, OK/INPUT, POWER

Key Type Tact

LED Color (On mode) White

LED Color (Power save mode) LED OFF [ Key Location ] Front

LANGUAGE

Country English, Germanic, French, Spanish, Italian, Swedish, Finnish, Portuguese, Polish, Russian, Greek, Chinese, Japanese, Korean, Ukrainian, Portuguese (Brazil), Hindi, Traditional Chinese

Number of Language 18

SPECIAL FEATURE

Picture Mode Yes

Ratio Yes

Reader Mode Yes

DDC/CI Yes

HDCP Yes (1.4)

Key Lock Yes

Plug & Play Yes

Response Time Yes

Color Calibrated Yes

Dual Control Yes

Flicker Safe Yes

Off Timer Yes

Six Axis Control Yes

Smart Energy saving Yes (Conserve energy by using luminance compensation algorithm)

Super Resolution+ Yes

OSC (On Screen Control / Screen Split) Yes

Power Charge Yes

COLOR

Front / Back Cover / Stand / Base Black (Texture)

STAND

Base Detachable Yes

Tilt (Angle) -5° ~ 25°

Swivel (Angle) Yes (±45ş)

Height Range (mm) 150mm

Down Height (mm) 70mm

Pivot Yes (Bi-directional, 90°)

CABINET

W x D x H (With Stand) 21.2" x 10.9" x 20.6"

W x D x H (Without Stand) 21.2" x 2.3" x 12.9"

Box 24.2" x 19.4" x 6.8"

VESA / Wall Mount 100mm x 100mm (Wall mount)

Weight (With Stand) 13.7 lbs

Weight (Without Stand) 7.5 lbs

Weight (Box) 18.1 lbs

STANDARD

TCO (Ver.) Yes (7.0)

UL (cUL) Yes

TUV-GS Yes

TUV-Ergo Yes

CB Yes

FCC-B Yes

CE Yes

EPA Yes (7.0)

ISO 9241-307 Yes

EPEAT Yes (Gold)

Windows Win 10

ROHS, REACH Yes

PVC-Free Yes

ACCESSORIES

Power Cord Yes

DisplayPort Yes

HDMI Yes

CD (Manual / Software) Yes (Manual, Driver)
