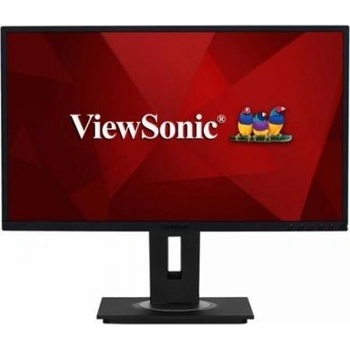

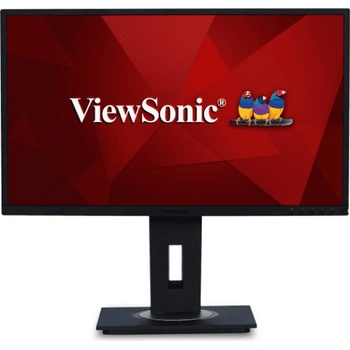

ViewSonic VG2748

OVERVIEW

ViewSonic VG2748 is a 27" (27" viewable) 1080p monitor with productivity enhancing features including IPS technology and an advanced ergonomic design for the modern day office. Utilising SuperClear® IPS panel technology and 1080p resolution, V OVERVIEW

ViewSonic VG2748 is a 27" (27" viewable) 1080p monitor with productivity enhancing features including IPS technology and an advanced ergonomic design for the modern day office. Utilising SuperClear® IPS panel technology and 1080p resolution, VG2748 delivers crisp, clear images from any viewing angle. An advanced ergonomic design offers the widest range of customisable adjustments currently available to provide maximum comfort, including pivot, swivel, height adjustment, and an impressive 40° tilt, which enables you to use the monitor while standing and to have strategic group discussions around the screen. VG2748 uses environmentally friendly packaging and offers quick and easy out-of-the-box set-up via the quick release stand. The cloud client mount on the back of the monitor stand coupled with cable management design features, makes VG2748 perfect for deployment in cloud-based environments. Versatile connectivity options include HDMI, DisplayPort, VGA, and USB 3.0 inputs.

SPECIFICATIONS

LCD PANEL

• Monitor Size : 27”W (27” Viewable) LCD monitor
• Panel Technology : SuperClear® IPS TFT LCD
• Resolution : FHD 1920 x 1080
• Display Area : 597.9(H) x 336.3(V) mm
• Aspect Ratio : 16:9
• Brightness : 300 cd/m2 (Typ.)
• Contrast Ratio : 1000:1 (Typ.)
• Dynamic Contrast Ratio : 50,000,000:1
• Viewing Angles : 178 degrees (Typ.) / 178 degrees (Typ.)
• Response Time : GTG: 5ms (Typ.)
• Pixel Size : 0.3114 (H) x 0.1038 (W) mm

INPUT SIGNAL

• Frequency : Analog: Fh = 24 ~ 82KHz ; Fv = 50 ~ 75Hz
• Digital: Fh = 24 ~ 82KHz ; Fv = 24 ~ 75Hz
• Sync : Separate Sync / Composite Sync / Sync on Green / TMDS / PCI-E

COMPATIBILITY

• PC : Windows 7, Windows 8, Windows 8.1, Windows 10 certified
• Mac® : Power Mac tested

CONNECTOR

• Input : VGA x 1, HDMI x 1 (v1.4 compatible), DisplayPort 1.2 x 1
• Output : N/A

AUDIO

Speaker : 2W x 2

USB

• Upstream : USB 3.0 Type B x 1
• Downstream : USB 3.0 Type A x 4

POWER

• Power : 3-pin plug (CEE22) x 1
• Voltage : AC 100-240V (Universal); 50/60Hz
• Consumption : 29.15W
• Optimize : 23.06W
• Conserve : 18.50W

ERGONOMICS

• Tilt : 40 ~ -5 degrees
• Swivel : +/-60 degrees
• Pivot : +/-90 degrees

SPECIAL FEATURES

Eye Care : Blue light filter, Flicker Free

WALL MOUNT

VESA® : 100mm x 100mm

OPERATING CONDITIONS

• Temperature (o F / o C) : 32°F to 104°F (0°C to 40°C)
• Humidity : 20% to 90% (no condensation)

DIMENSIONS (W X H X D) (MM)

• Physical With Stand (mm) : 620.7mm (W) x 537.2mm (H) x 202.2 mm (D)
• Physical Without Stand (mm) : 620.7 mm (W) x 366.1mm (H) x 51.1 mm (D)
• Packaging (mm) : 692 mm (W) x 430 mm (H) x 218 mm (D)

WEIGHT

• Net With Stand : 7.3kg
• Net Without Stand : 4.9kg
• Gross : 10.1 kg

REGULATIONS

CTUVus, FCC-B, ICES003, Energy Star 7.0 , EPEAT Silver, TUV Mexico CoC, Mexico Energy, CE, CB , RoHS , Erp, REACH SVHC, EEL , WEEE, TCO7.0, GS, EAC/CU, UkrSEPRO

PACKAGE CONTENTS

LCD Display

Power Cable (1.8m)

DP to DP Cable (1.8m)

USB3.0 Upstream Cable (1.8m)

Quick Start Guide
