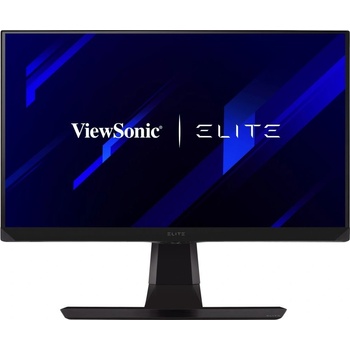

ViewSonic XG270

OVERVIEW

Your monitor should be as inspiring as your adventures. It should give you the best experience possible, without dominating your desktop. With a blazing fast 240Hz refresh rate, 1ms (GtG) response time and vibrant IPS colour technology, the ELITE XG270 brings that level of excitement to reality. By uniting the core principles of our engineering philosophy, gamer-driven innovation and minimalist design, the ELITE XG270 is equipped to be your next gaming monitor.

SPECIFICATIONS

DISPLAY

• Display Size (in.): 27
• Viewable Area (in.): 27
• Panel Type: IPS Technology
• Resolution: 1920 x 1080
• Resolution Type: FHD
• Static Contrast Ratio: 1,000:1 (typ)
• Dynamic Contrast Ratio: 120M:1
• Light Source: LED
• Brightness: 400 cd/m2 (typ)
• Colours: 16.7M
• Colour Space Support: 8 bit true
• Aspect Ratio: 16:9
• Response Time (Typical GTG): 1ms
• Viewing Angles: 178o horizontal, 178o vertical
• Backlight Life (Hours): 30000 Hrs (Min)
• Curvature: Flat
• Adaptive Sync: 240
• Blue Light Filter: Yes
• Flicker-Free: Yes
• Colour Gamut: NTSC: 78% size (Typ)
• sRGB: 110% size / 99% coverage (Typ)
• Pixel Size: 0.311 mm (H) x 0.311 mm (V)
• Surface Treatment: Anti-Glare, Hard Coating (3H)

COMPATIBILITY

• PC Resolution (max): 1920x1080
• Mac® Resolution (max): 1920x1080
• PC Operating System: Windows 7/8/10 certified; macOS tested
• Mac® Resolution (min): 1920x1080

CONNECTOR

• 3.5mm Audio Out: 1
• HDMI 2.0 (with HDCP 2.2): 2
• Display Port: 1
• Power in: External power adapter

AUDIO

Internal Speakers: 3Watts x2

POWER

• Eco Mode (Conserve): 32W
• Eco Mode (optimised): 38W
• Consumption (typical): 41W
• Consumption (max): 46W
• Voltage: AC 100-240V, 50/60 Hz
• Stand-by: 0.5W
• Power Supply: External

ADDITIONAL HARDWARE

• Kensington Lock Slot: 1
• Cable Organisation: Yes

CONTROLS

• Physical Controls: Joystick key: Up, Right, Down, Left, Center; Quick Access; Power
• On Screen Display: Game Modes, Display, Input Select, ViewMode, Audio Adjust, Setup Menu

OPERATING CONDITIONS

• Temperature: 32°F to 104°F (0°C to 40°C)
• Humidity (non-condensing): 20% to 90%

WALL MOUNT

VESA Compatible: 100 x 100 mm

INPUT SIGNAL

• Frequency Horizontal: 15 ~ 255KHz
• Frequency Vertical: 48 ~ 241Hz

VIDEO INPUT

Digital Sync: TMDS - HDMI (v2.0), PCI-E - DisplayPort (v1.2)

ERGONOMICS

• Height Adjust (mm): 120
• Swivel: 90o
• Tilt (Forward/Back): -5o / 20o
• Pivot (Right/Left): 90o / 90o

WEIGHT (METRIC)

• Net (kg): 7.5
• Net Without Stand (kg): 4.5
• Gross (kg): 11.6

DIMENSIONS (METRIC) (WXHXD)

• Packaging (mm): 698 x 525 x 282
• Physical (mm): 614 x 458.7~571.6 x 265
• Physical Without Stand (mm): 614 x 370 x 68

GENERAL

• Regulations: cTUVus, FCC-B, ICES003, CEC, MX-CoC, Mexico Energy, CE, CE EMC, CB, RoHS, ErP, REACH, WEEE, EAC, UkrSEPRO, CCC, China RoHS, CEL
• PACKAGE CONTENTS: XG270 x1, 3-pin Mickey Mouse Plug (IEC C5) x1, DisplayPort Cable (v1.2; Male-Male) x1, USB A/B Cable (v3.2; Male-Male) x1, AC/DC Adapter x1, Quick Start Guide x1, Elite Hood x1
• Recycle/Disposal: Please dispose of in accordance with local, state or federal laws.
• Warranty: *Warranty offered may differ from market to market
• Country Of Origin: China
